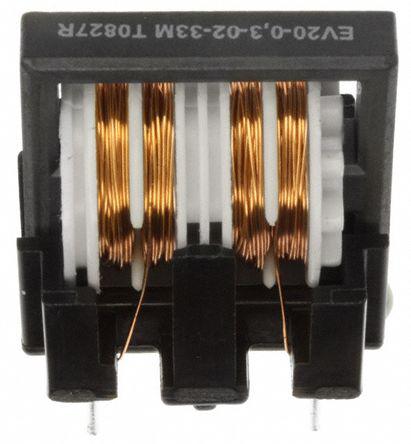

Schaffner 33 mH ±30% Common Mode Choke, Max SRF:400Hz, 300mA Idc, 1.78Ω Rdc EV/EH

EV20-0-3-02-33M Schaffner 33 mH ±30% Common Mode Choke, Max SRF:400Hz, 300mA Idc, 1.78Ω Rdc EV/EH
Schaffner

Product Information

Maximum DC Resistance:
1.78Ω
Dimensions:
21 x 16 x 25mm
Lead Diameter:
0.8mm
Maximum DC Current:
300mA
Series:
EV/EH
Minimum Operating Temperature:
-25°C
Length:
21mm
Height:
25mm
Depth:
16mm
Inductance:
33 mH
Maximum Self Resonant Frequency:
400Hz
Mounting Type:
Through Hole
Lead Pitch:
10 mm, 13 mm
Maximum Operating Temperature:
+100°C
Tolerance:
±30%
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is 33 mH ±30% Common Mode Choke Max SRF:400Hz 300mA Idc 1.78Ω Rdc EV/EH manufactured by Schaffner. The manufacturer part number is EV20-0.3-02-33M. It allows up to 1.78ω maximum DC resistance. The given dimensions of the product include 21 x 16 x 25mm. Furthermore, the lead has 0.8mm diameter. While it carries 300ma of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 21mm. In addition, the height is 25mm. The product comes in 16mm depth. The product has a 33 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 10 mm, 13 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship EV20-0.3-02-33M Internationally to many countries around the world.
Yes. You can also search EV20-0.3-02-33M on website for other similar products.
We accept all major payment methods for all products including ET13849733. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13849733 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13849733.
You can order Schaffner brand products with EV20-0.3-02-33M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schaffner 33 mH ±30% Common Mode Choke, Max SRF:400Hz, 300mA Idc, 1.78Ω Rdc EV/EH. You can also check on our website or by contacting our customer support team for further order details on Schaffner 33 mH ±30% Common Mode Choke, Max SRF:400Hz, 300mA Idc, 1.78Ω Rdc EV/EH.
