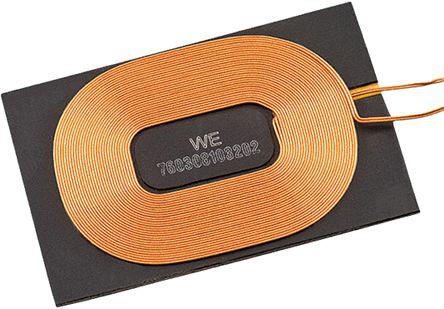

Wurth 12 μH ±10% Ferrite Coil Inductor, Max SRF:25MHz, Q:33, 2.9A Idc, 200mΩ Rdc WE-WPCC

760308103202 Wurth 12 μH ±10% Ferrite Coil Inductor, Max SRF:25MHz, Q:33, 2.9A Idc, 200mΩ Rdc WE-WPCC
Wurth Elektronik

Product Information

Maximum DC Resistance:
200mΩ
Dimensions:
48 x 32 x 0.958mm
Lead Diameter:
0.33mm
Maximum DC Current:
2.9A
Series:
WE-WPCC
Minimum Operating Temperature:
-20°C
Minimum Quality Factor:
33
Length:
48mm
Height:
0.958mm
Depth:
32mm
Core Material:
Ferrite
Inductance:
12 μH
Maximum Self Resonant Frequency:
25MHz
Mounting Type:
Through Hole
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Terminal Type:
Through Hole
RoHs Compliant
Checking for live stock

This is Wurth 12 μH ±10% Ferrite Coil Inductor Max SRF:25MHz Q:33 2.9A Idc 200mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308103202. It allows up to 200mω maximum DC resistance. The given dimensions of the product include 48 x 32 x 0.958mm. Furthermore, the lead has 0.33mm diameter. While it carries 2.9a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. It has minimum 33 quality factors. Its accurate length is 48mm. In addition, the height is 0.958mm. The product comes in 32mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 12 μh inductance value. It provides 25mhz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a through hole type.

pdf icon
760308103202 WE-WPCC Wireless Power Charging Coil Data Sheet(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
