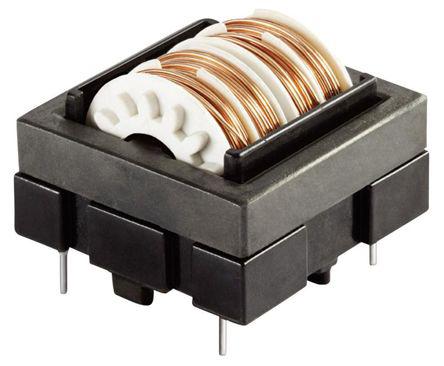

Schaffner 44 mH ±30% Common Mode Choke, Max SRF:400Hz, 500mA Idc, 1.25Ω Rdc EV/EH

EH24-0-5-02-44M Schaffner 44 mH ±30% Common Mode Choke, Max SRF:400Hz, 500mA Idc, 1.25Ω Rdc EV/EH
Schaffner

Product Information

Maximum DC Resistance:
1.25Ω
Dimensions:
24 x 24 x 20mm
Lead Diameter:
0.8mm
Maximum DC Current:
500mA
Series:
EV/EH
Minimum Operating Temperature:
-25°C
Length:
24mm
Height:
20mm
Depth:
24mm
Inductance:
44 mH
Maximum Self Resonant Frequency:
400Hz
Mounting Type:
Through Hole
Lead Pitch:
15 mm, 21 mm
Maximum Operating Temperature:
+100°C
Tolerance:
±30%
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is 44 mH ±30% Common Mode Choke Max SRF:400Hz 500mA Idc 1.25Ω Rdc EV/EH manufactured by Schaffner. The manufacturer part number is EH24-0.5-02-44M. It allows up to 1.25ω maximum DC resistance. The given dimensions of the product include 24 x 24 x 20mm. Furthermore, the lead has 0.8mm diameter. While it carries 500ma of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 24mm. In addition, the height is 20mm. The product comes in 24mm depth. The product has a 44 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 15 mm, 21 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.
