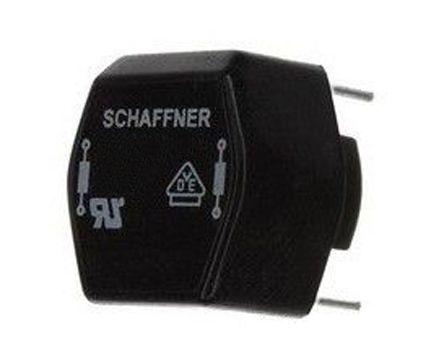

Schaffner 10 (Dual Load) μH, 40 (Dual Load) μH Common Mode Choke, Max SRF:18 (Single Load) MHz, 22 (Dual Load) MHz

Enrgtech Part No: ET13813391
|
Manufacturer Part No:
RS514-4-02
|
Manufacturer: Schaffner

RS514-4-02 Schaffner 10 (Dual Load) μH, 40 (Dual Load) μH Common Mode Choke, Max SRF:18 (Single Load) MHz, 22 (Dual Load) MHz

Product Information

Maximum DC Resistance:

20 (Dual Load) mΩ, 40 (Single Load) mΩ

Dimensions:

21.5 x 22.5 x 13.2mm

Lead Diameter:

0.8mm

Maximum DC Current:

Series:

Minimum Operating Temperature:

-40°C

Length:

21.5mm

Height:

13.2mm

Depth:

22.5mm

Inductance:

10 (Dual Load) μH, 40 (Dual Load) μH

Maximum Self Resonant Frequency:

18 (Single Load) MHz, 22 (Dual Load) MHz

Mounting Type:

Radial

Checking for live stock

This is 10 (Dual Load) μH 40 (Dual Load) μH Common Mode Choke Max SRF:18 (Single Load) MHz 22 (Dual Load) MHz manufactured by Schaffner. The manufacturer part number is RS514-4-02. It allows up to 20 (dual load) mω, 40 (single load) mω maximum DC resistance. The given dimensions of the product include 21.5 x 22.5 x 13.2mm. Furthermore, the lead has 0.8mm diameter. While it carries 4a of maximum DC current. The product rs, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 21.5mm. In addition, the height is 13.2mm. The product comes in 22.5mm depth. The product has a 10 (dual load) μh, 40 (dual load) μh inductance value. It provides 18 (single load) mhz, 22 (dual load) mhz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 20.1mm pitch. It has a maximum operating temperature of +125°c. The terminal is a radial leaded type.
