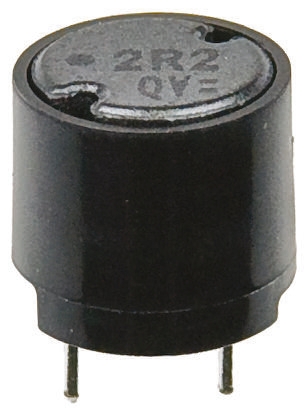

Panasonic 150 μH ±10% Ferrite Leaded Inductor, 740mA Idc, 320mΩ Rdc ELC09D

ELC09D151F Panasonic 150 μH ±10% Ferrite Leaded Inductor, 740mA Idc, 320mΩ Rdc ELC09D
Panasonic

Product Information

Diameter:
9.5mm
Dimensions:
9.5 (Dia.) x 8.9mm
Lead Diameter:
1mm
Maximum DC Resistance:
320mΩ
Maximum DC Current:
740mA
Series:
ELC09D
Minimum Operating Temperature:
-20°C
Height:
8.9mm
Core Material:
Ferrite
Inductance:
150 μH
Mounting Type:
Radial
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Terminal Type:
Through Hole
RoHs Compliant
Checking for live stock

This is 150 μH ±10% Ferrite Leaded Inductor 740mA Idc 320mΩ Rdc ELC09D manufactured by Panasonic. The manufacturer part number is ELC09D151F. Its diameter is 9.5mm. The given dimensions of the product include 9.5 (dia.) x 8.9mm. Furthermore, the lead has 1mm diameter. It allows up to 320mω maximum DC resistance. While it carries 740ma of maximum DC current. The product elc09d, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. In addition, the height is 8.9mm. The core is manufactured from highly durable and reliable ferrite materials. The product has a 150 μh inductance value. The product is available in radial configuration. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a through hole type.

pdf icon
Panasonic ELC09D Pin Terminal Choke Coils Datasheet(Technical Reference)
