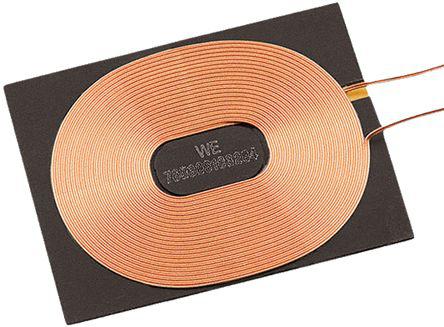

Wurth 16.7 μH ±10% Ferrite Coil Inductor, Max SRF:11MHz, Q:32, 2A Idc, 430mΩ Rdc WE-WPCC

760308103204 Wurth 16.7 μH ±10% Ferrite Coil Inductor, Max SRF:11MHz, Q:32, 2A Idc, 430mΩ Rdc WE-WPCC
Wurth Elektronik

Product Information

Maximum DC Resistance:
430mΩ
Dimensions:
38.5 x 30.5 x 0.83mm
Mounting Type:
Through Hole
Maximum DC Current:
2A
Series:
WE-WPCC
Minimum Operating Temperature:
-20°C
Minimum Quality Factor:
32
Length:
38.5mm
Height:
0.83mm
Depth:
30.5mm
Core Material:
Ferrite
Inductance:
16.7 μH
Maximum Self Resonant Frequency:
11MHz
Lead Pitch:
7mm
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Terminal Type:
Through Hole
RoHs Compliant
Checking for live stock

This is Wurth 16.7 μH ±10% Ferrite Coil Inductor Max SRF:11MHz Q:32 2A Idc 430mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308103204. It allows up to 430mω maximum DC resistance. The given dimensions of the product include 38.5 x 30.5 x 0.83mm. The product is available in through hole configuration. While it carries 2a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. It has minimum 32 quality factors. Its accurate length is 38.5mm. In addition, the height is 0.83mm. The product comes in 30.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 16.7 μh inductance value. It provides 11mhz of maximum self-resonant frequency. The lead features 7mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a through hole type.

pdf icon
760308103204 WE-WPCC Wireless Power Charging Coil Data Sheet(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
