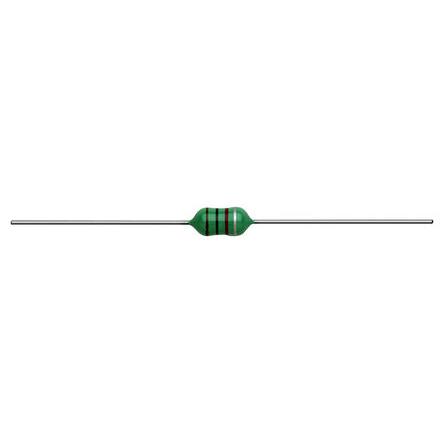

Vishay 22 μH ±10% Ferrite Leaded Inductor, Max SRF:25MHz, Q:50, 285mA Idc, 1.2Ω Rdc IRF

IRF01BH220K Vishay 22 μH ±10% Ferrite Leaded Inductor, Max SRF:25MHz, Q:50, 285mA Idc, 1.2Ω Rdc IRF
Vishay

Product Information

Diameter:
3.05mm
Dimensions:
3.05 (Dia.) x 8.38mm
Lead Diameter:
0.5mm
Maximum DC Resistance:
1.2Ω
Maximum DC Current:
285mA
Series:
IRF
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
50
Height:
8.38mm
Length:
89.16mm
Core Material:
Ferrite
Inductance:
22 μH
Maximum Self Resonant Frequency:
25MHz
Mounting Type:
Axial
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Terminal Type:
Axial Leaded
Checking for live stock

This is 22 μH ±10% Ferrite Leaded Inductor Max SRF:25MHz Q:50 285mA Idc 1.2Ω Rdc IRF manufactured by Vishay. The manufacturer part number is IRF01BH220K. Its diameter is 3.05mm. The given dimensions of the product include 3.05 (dia.) x 8.38mm. Furthermore, the lead has 0.5mm diameter. It allows up to 1.2ω maximum DC resistance. While it carries 285ma of maximum DC current. The product irf, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 50 quality factors. In addition, the height is 8.38mm. Its accurate length is 89.16mm. The core is manufactured from highly durable and reliable ferrite materials. The product has a 22 μh inductance value. It provides 25mhz of maximum self-resonant frequency. The product is available in axial configuration. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a axial leaded type.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IRF01BH220K on website for other similar products.
We accept all major payment methods for all products including ET13802992. Please check your shopping cart at the time of order.
You can order Vishay brand products with IRF01BH220K directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay 22 μH ±10% Ferrite Leaded Inductor, Max SRF:25MHz, Q:50, 285mA Idc, 1.2Ω Rdc IRF. You can also check on our website or by contacting our customer support team for further order details on Vishay 22 μH ±10% Ferrite Leaded Inductor, Max SRF:25MHz, Q:50, 285mA Idc, 1.2Ω Rdc IRF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13802992 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13802992.
Yes. We ship IRF01BH220K Internationally to many countries around the world.
