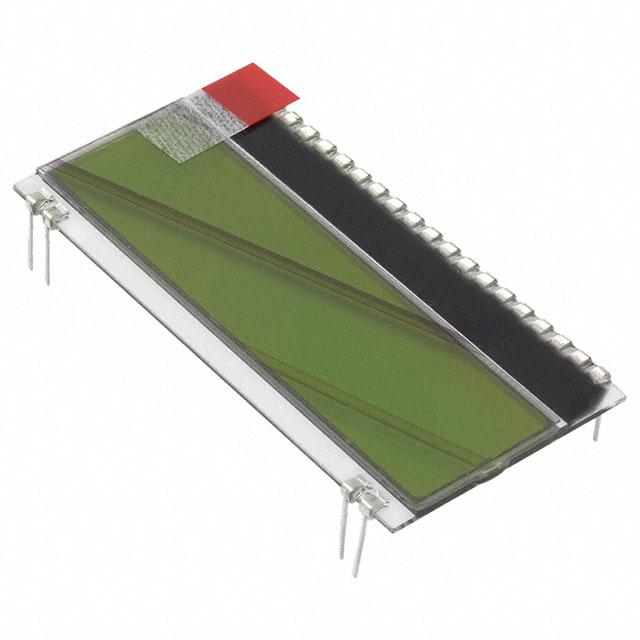

Display Visions EA DOGM162L-A

EA-DOGM162L-A Display Visions EA DOGM162L-A
EA DOGM162L-A
Display Visions

Product Information

Characters per Row:
16
Character Rows:
2
Controller Type:
ST7036
External Depth:
2mm
Driver Mounting:
PCB Mount
Character Width:
2.5mm
Display Matrix Technology:
STN
Operating Temperature Range:
-20 → +70°C
Character Matrix:
2 Rows by 16 Characters
Viewing Area Width:
51mm
Character Height:
5.6mm
External Dimensions:
27.9 x 55 x 2mm
Viewing Area Height:
14.5mm
Viewing Area Dimensions:
51 x 15mm
Background Colour:
Yellow-Green
Display Type:
Alphanumeric
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-20°C
Display Mode:
Reflective
External Height:
27.9mm
External Width:
55mm
Interface Type:
4-bit, 8-bit, SPI
Character Size:
5.57mm H x 2.47mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
16 x 2
Operating Temperature:
-20°C ~ 70°C
Outline L x W x H:
55.00mm x 27.94mm x 2.00mm
REACH Status:
REACH Unaffected
Interface:
Parallel, 8-Bit, SPI
Manufacturer:
Display Visions
Viewing Area:
51.00mm L x 14.50mm W
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Text Color:
Gray
standardLeadTime:
2 Weeks
Background Color:
Green
Display Type:
STN - Super-Twisted Nematic
Series:
EA DOG
Number of Characters:
32.0
Packaging:
Bag
Voltage - Supply:
3.3V
Base Product Number:
EADOGM162
Display Mode:
Reflective
Dot Size:
0.47mm W x 0.67mm H
Backlight:
Without Backlight
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Display Visions. The manufacturer part number is EA DOGM162L-A. Additionally, it has 16 characters per row . The product contains 2 character rows . The product has integrated with a st7036, a versatile and functional controller. It has an external depth of 2mm. It has a pcb mount mounting driver . In addition, it has about 2.5mm character width . It is designed using stn display matrix technology . The product has -20 → +70°c of operating temperature range. It contains 2 rows by 16 characters matrix character . It has a 51mm width of viewing area . It has a standard 5.6mm character in height . Features 27.9 x 55 x 2mm external caliber. In addition, it has a standard 14.5mm height of viewing area . It has approximately 51 x 15mm viewing area dimensions . It is designed with an attractive yellow-green colour background . It features a remarkable alphanumeric display. It has a maximum operating temperature of +70°c. Whereas, the minimum operating temperature of the product is -20°c. Typically has a reflective display mode. While its external height is 27.9mm. The product is 55mm wide. It is a type of 4-bit, 8-bit, spi interface. Its character size is 5.57mm h x 2.47mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 16 x 2 display format. The product has -20°c ~ 70°c operating temperature range. Outline Specifications include in (L x W x H) - 55.00mm x 27.94mm x 2.00mm. In addition, it is reach unaffected. A bespoke product is parallel, 8-bit, spi interface. The display visions's product offers user-desired applications. Provides a 51.00mm l x 14.50mm w viewing area. Its typical moisture sensitivity level is 1 (unlimited). The text is provided in gray colour. It has a long 2 weeks standard lead time. The product has a classic green background colour. It features a remarkable stn - super-twisted nematic display. The product ea dog, is a highly preferred choice for users. Consists of 32.0 characters. In addition, bag is the available packaging type of the product. It has optimum voltage supply of 3.3v. Moreover, it corresponds to eadogm162, a base product number of the product. Has a dot size of 0.47mm w x 0.67mm h. Backlight Options - without backlight. The product is designated with the ear99 code number.

pdf icon
DOG Series 3.3V Datasheet(Issue 8.2012)(Technical Reference)
pdf icon
EA DOG-M(Datasheets)
