Dimensions:
24 x 10 x 18.8mm
Electrical Life:
5 x 10^4 cycles
Coil Resistance:
720 Ω
Life:
1 x 10^6 cycles
Standards Met:
CULus File No:E134517, VDE File No:40039460
Coil Power:
200mW
Maximum Switching Voltage DC:
30V
Maximum Switching Power DC:
150 W
Isolation Coil To Contact:
5kV ac
Maximum Operating Temperature:
+85°C
Terminal Type:
PCB Pin
Maximum Switching Current AC:
10 A
Coil Voltage:
12 V dc
Operating Temperature Range:
-40 → +85°C
Switching Current:
10 A
Contact Configuration:
SPNO
Depth:
10mm
Relay Switching Classification:
Subminiature Intermediate Power Latching Relay
Mounting Type:
PCB Mount

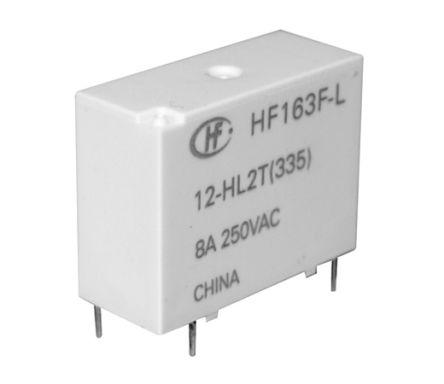

Series:
HF163F-L
Length:
24mm
Height:
18.8mm
Maximum Switching Current DC:
10 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
2.5 kVA
Number of Poles:
1
Contact Material:
Silver Alloy
