DPDT PCB Mount Latching Relay, 1 A, 7.5V dc For Use In General Purpose Applications

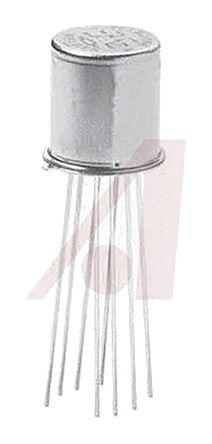

ER432D-5A DPDT PCB Mount Latching Relay, 1 A, 7.5V dc For Use In General Purpose Applications
ER432D-5A
ER432D-5A
ET13974969
ET13974969
Latching Relays
Teledyne

Product Information

Dimensions:
9.4 (Dia.) x 9.52mm
Electrical Life:
10000000 cycles
Application:
General Purpose
Coil Resistance:
100 Ω
Coil Power:
200mW
Maximum Switching Voltage DC:
28V
Isolation Coil To Contact:
500V rms
Maximum Operating Temperature:
+125°C
Terminal Type:
PCB Pin
Coil Voltage:
7.5 V dc
Operating Temperature Range:
-65 → +125°C
Switching Current:
1 A
Contact Configuration:
DPDT
Depth:
9.4mm
Relay Switching Classification:
RF Relay
Features:
All Welded Construction, High Force/Mass Ratios For Resistance to Shock and Vibration, Unique Uni-Frame Design Providing High Magnetic Efficiency and Mechanical Rigidity
Mounting Type:
PCB Mount
Height:
9.52mm
Maximum Switching Voltage AC:
115V
Minimum Operating Temperature:
-65°C
Number of Poles:
2
Contact Material:
Metal Alloy
Checking for live stock

This is DPDT PCB Mount Latching Relay 1 A 7.5V dc For Use In General Purpose Applications manufactured by Teledyne. The manufacturer part number is ER432D-5A. The given dimensions of the product include 9.4 (dia.) x 9.52mm. The product offers long-lasting services of 10000000 cycles. Applications Information involves general purpose. It holds up to 100 ω coil resistance. Robust coil power of 200mw. While it carries 28v of maximum DC switching voltage. The product has 500v rms isolation coil to contact. It has a maximum operating temperature of +125°c. The terminal is a pcb pin type. The coil voltage of the product is 7.5 v dc. The product has -65 → +125°c of operating temperature range. It is integrated with 1 a switching current. The contact is equipped with dpdt configuration. The product comes in 9.4mm depth. It has a rf relay switching relay configuration . The splendid features of the product include all welded construction, high force/mass ratios for resistance to shock and vibration, unique uni-frame design providing high magnetic efficiency and mechanical rigidity. The product is available in pcb mount configuration. In addition, the height is 9.52mm. It has a maximum AC switching voltage of 115v. Whereas, the minimum operating temperature of the product is -65°c. It has equipped with 2 poles. The product is made from sturdy metal alloy materials.
