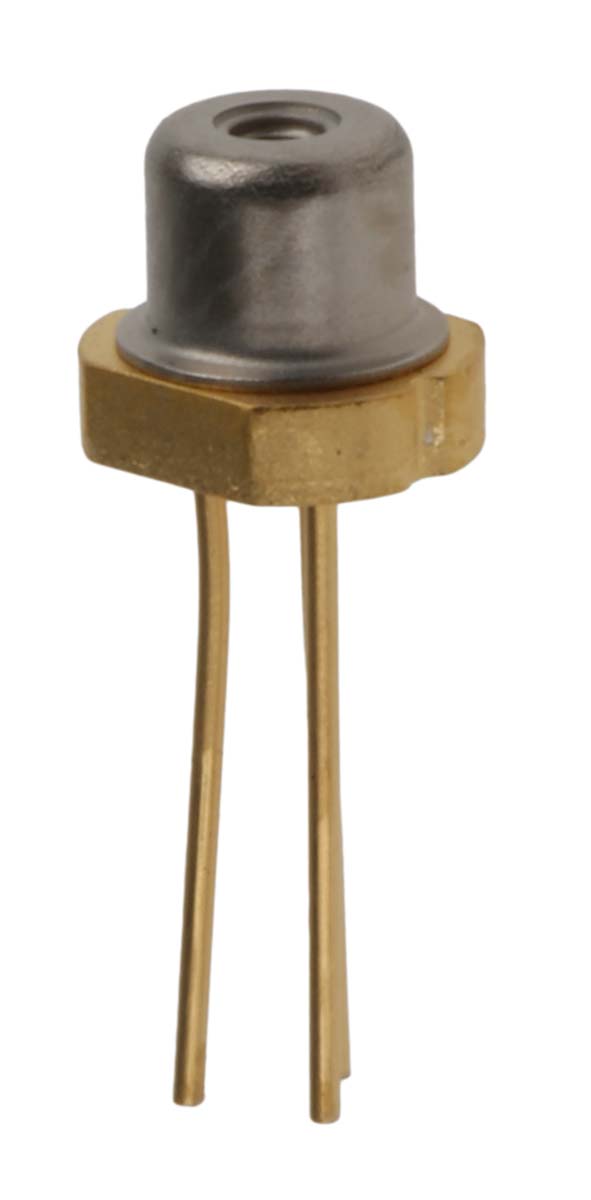

Osram Opto PL 520_B1_2 Green Laser Diode 515nm 30mW, 3-Pin TO-38 package

PL-520_B1_2 Osram Opto PL 520_B1_2 Green Laser Diode 515nm 30mW, 3-Pin TO-38 package
ams OSRAM

Product Information

Diameter:
3.8mm
Dimensions:
3.8 (Dia.) x 3.15mm
Mounting Type:
Through Hole
Laser Type:
Continuous Wave
Supply Voltage Range:
7 → 8 V
Maximum Operating Current:
140mA
Height:
3.15mm
Optical Output Power:
30mW
Minimum Supply Voltage:
6.5V
Length:
10mm
Perpendicular Beam Divergence FWHM:
25°
Package Type:
TO-38
Parallel Beam Divergence FWHM:
11°
Laser Colour:
Green
Number of Pins:
3
Maximum Supply Voltage:
8V
Peak Wavelength:
515nm
Reverse Voltage:
2V
RoHs Compliant
Checking for live stock

This is Osram Opto Green Laser Diode 515nm 30mW 3-Pin TO-38 package manufactured by ams OSRAM. The manufacturer part number is PL 520_B1_2. Its diameter is 3.8mm. The given dimensions of the product include 3.8 (dia.) x 3.15mm. The product is available in through hole configuration. It has a standard continuous wave type laser . It has a typical 7 → 8 v supply voltage range . Moreover, the product needs a maximum 140ma operating current . In addition, the height is 3.15mm. Furthermore, it has about 30mw optical output power . It has a minimum 6.5v supply voltage . Its accurate length is 10mm. Additionally, it has 25° perpendicular beam divergence FWHM . The package is a sort of to-38. With 11° of parallel beam divergence FWHM . It is offered with a/an green colour laser . It is comprised of 3 pins. The product requires a maximum 8v supply voltage . Whereas, its peak wavelength is 515nm . With a 2v of reverse voltage .

pdf icon
PL 520 Datasheet(Technical Reference)
