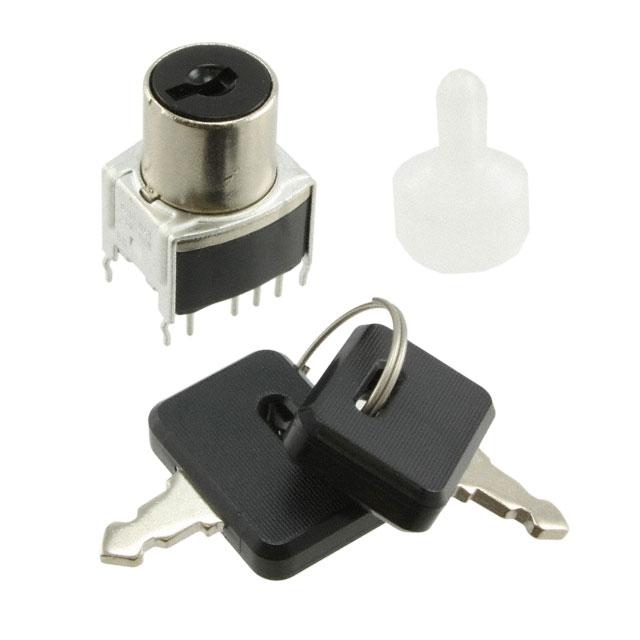

NKK Switches SK14DG13

SK14DG13 NKK Switches
SK14DG13
NKK Switches

Product Information

HTSUS:
8536.50.9020
RoHS Status:
ROHS3 Compliant
Electrical Life:
10,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-25°C ~ 70°C
Panel Cutout Dimensions:
-
Mechanical Life:
30,000 Cycles
Number of Positions:
3
title:
SK14DG13
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
SK14DG13 Models
edacadModelUrl:
/en/models/1027335
Depth Behind Flange:
-
Manufacturer:
NKK Switches
Angle of Throw:
45°
Switch Function:
On-On-On
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SP3T
standardLeadTime:
26 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Contact Timing:
Non-Shorting (BBM)
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
SK
Packaging:
Bulk
Actuator Type:
Flat Key
Key Removable Positions:
All
Contact Material:
Beryllium Copper
Base Product Number:
SK14DG
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is SK14DG13. It is assigned with possible HTSUS value of 8536.50.9020. The product is rohs3 compliant. The product offers long-lasting services of 10,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -25°c ~ 70°c operating temperature range. The product also provide mechanical stability with 30,000 cycles. The product carries possible position value of 3. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. The nkk switches's product offers user-desired applications. It has a throw angle 45°. It is designed as a on-on-on switching function. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has an integral sp3t circuit. It has a long 26 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). Contact Timing Options: non-shorting (bbm). The splendid features of the product include process sealed. The product is available in through hole configuration. The product sk, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries flat key actuator. It has all crucial removable positions. The product is made from sturdy beryllium copper materials. Moreover, it corresponds to sk14dg, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
SK Series Boot Color 08/Aug/2014(PCN Design/Specification)
pdf icon
SK Series Product Improvement 12/May/2017(PCN Design/Specification)
pdf icon
SK Series Process Sealed Keylocks(Datasheets)
