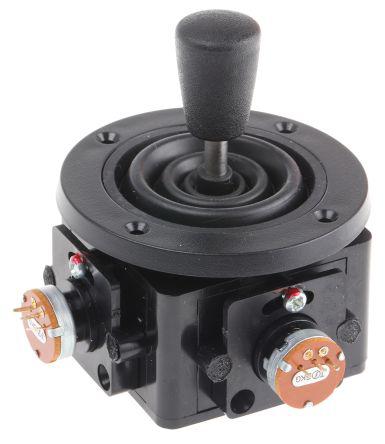

IP67 Joystick Switch, 4 axes, 16 A @ 250 V ac Solder, Tab 250V ac/dc SPDT, -40 → +85°C

J84-111-113 IP67 Joystick Switch, 4 axes, 16 A @ 250 V ac Solder, Tab 250V ac/dc SPDT, -40 → +85°C
J84-111-113
J84-111-113
ET13974180
ET13974180
Joystick Switches
Saia-Burgess

Product Information

Contact Voltage Rating:
250V ac/dc
Joystick Travel:
15 °
Handle Height:
67mm
Handle Type:
Knob
Contact Current Rating:
16 A @ 250 V ac
IP Rating:
IP67
Number of Axes:
4
Operating Temperature Range:
-40 → +85°C
Depth Behind Panel:
37mm
Minimum Operating Temperature:
-40°C
Contact Configuration:
SPDT
Mechanical Life:
5 x 10⁵Operations
Switch Technology:
Momentary
Maximum Operating Temperature:
+85°C
Terminal Type:
Solder, Tab
Contact Material:
Silver
RoHs Compliant
Checking for live stock

This is IP67 Joystick Switch 4 axes 16 A @ 250 V ac Solder Tab 250V ac/dc SPDT -40 → +85°C manufactured by Saia-Burgess. The manufacturer part number is J84-111-113. The integrated contact has 250v ac/dc of voltage rating. Additionally, it has about 15 ° joystick travel capacity . Its handle height is approximately 67mm . Basically, this handle is a type of knob, allowing extreme comfort. The rated contact current is 16 a @ 250 v ac. It is IP rated with ip67. It is designed having 4 axes. The product has -40 → +85°c of operating temperature range. Typical depth of 37mm behind panel. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with spdt configuration. The product also provide mechanical stability with 5 x 10⁵operations. It is created using momentary switch technology . It has a maximum operating temperature of +85°c. The terminal is a solder, tab type. The product is made from sturdy silver materials.

pdf icon
J82/J84 Joystick Controller Product Data(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search J84-111-113 on website for other similar products.
We accept all major payment methods for all products including ET13974180. Please check your shopping cart at the time of order.
You can order Saia-Burgess brand products with J84-111-113 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Joystick Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IP67 Joystick Switch, 4 axes, 16 A @ 250 V ac Solder, Tab 250V ac/dc SPDT, -40 → +85°C. You can also check on our website or by contacting our customer support team for further order details on IP67 Joystick Switch, 4 axes, 16 A @ 250 V ac Solder, Tab 250V ac/dc SPDT, -40 → +85°C.
