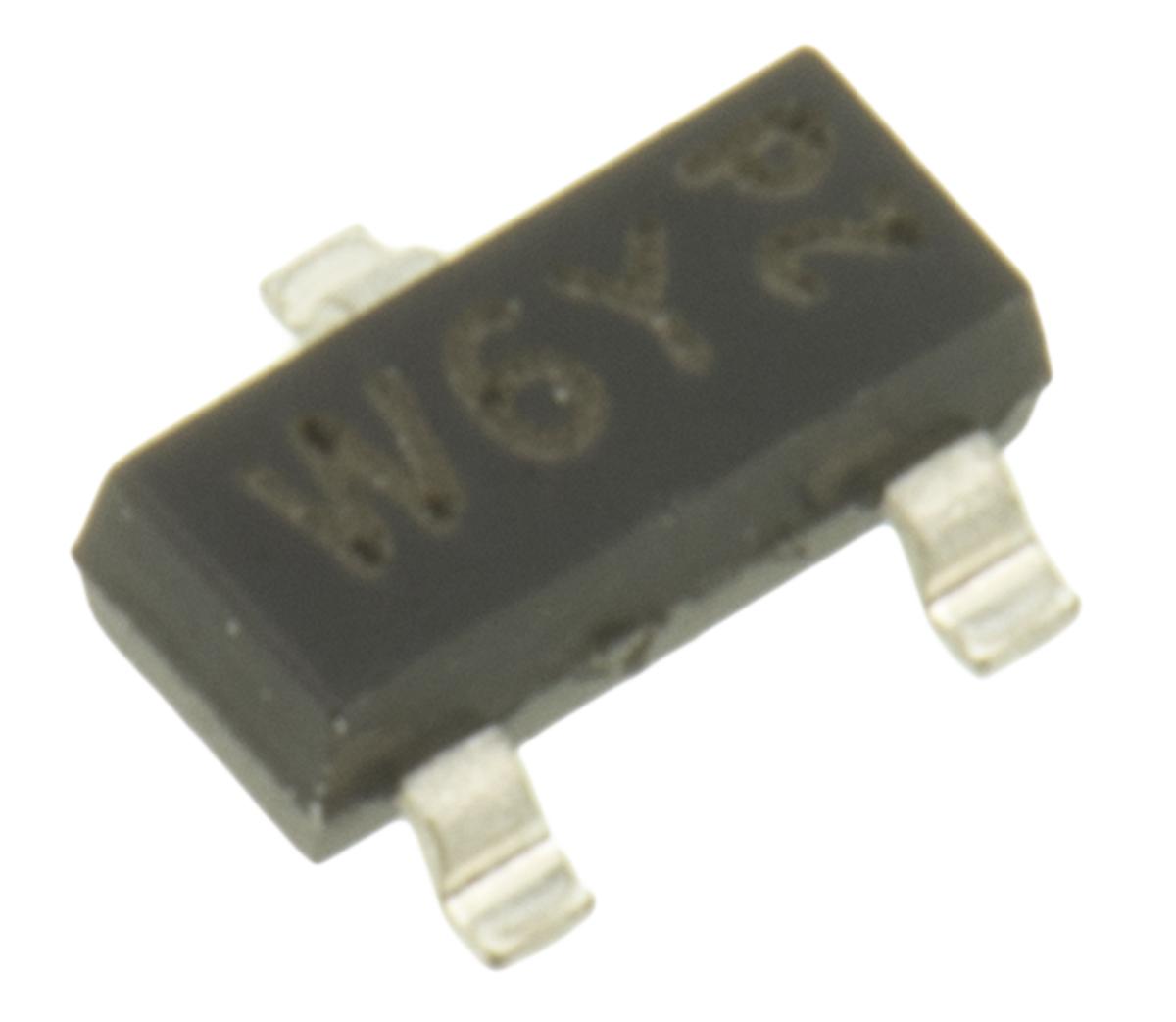

NXP PMBFJ177,215 P-channel JFET Transistor, 30 V, Idss 1.5 → 20mA, 3-Pin SOT-23

PMBFJ177-215 NXP PMBFJ177,215 P-channel JFET Transistor, 30 V, Idss 1.5 → 20mA, 3-Pin SOT-23
NXP

Product Information

Maximum Drain Source Voltage:
30 V
Configuration:
Single
Dimensions:
3 x 1.4 x 1mm
Mounting Type:
Surface Mount
Maximum Gate Source Voltage:
+30 V
Idss Drain-Source Cut-off Current:
1.5 to 20mA
Height:
1mm
Width:
1.4mm
Length:
3mm
Maximum Drain Source Resistance:
300 Ω
Package Type:
SOT-23 (TO-236AB)
Maximum Drain Gate Voltage:
30V
Minimum Operating Temperature:
-65 °C
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is P-channel JFET Transistor 30 V Idss 1.5 → 20mA 3-Pin SOT-23 manufactured by NXP. The manufacturer part number is PMBFJ177,215. It has a maximum of 30 v drain source voltage. The product is available in single configuration. The given dimensions of the product include 3 x 1.4 x 1mm. The product is available in surface mount configuration. It features a maximum gate source voltage of +30 v. Moreover, it has 1.5 to 20ma Idss drain source cut-off current . In addition, the height is 1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3mm. It provides up to 300 ω maximum drain source resistance. The package is a sort of sot-23 (to-236ab). It has a maximum 30v drain gate voltage . Whereas, the minimum operating temperature of the product is -65 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PMBFJ177,215 on website for other similar products.
We accept all major payment methods for all products including ET16753591. Please check your shopping cart at the time of order.
You can order NXP brand products with PMBFJ177,215 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in JFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP PMBFJ177,215 P-channel JFET Transistor, 30 V, Idss 1.5 → 20mA, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on NXP PMBFJ177,215 P-channel JFET Transistor, 30 V, Idss 1.5 → 20mA, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16753591 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NXP" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16753591.
Yes. We ship PMBFJ177,215 Internationally to many countries around the world.
