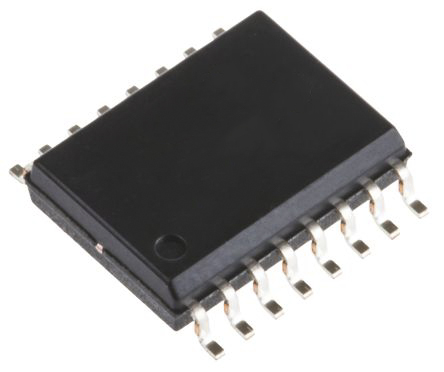

onsemi NCV57530DWKR2G

NCV57530DWKR2G onsemi
onsemi

Product Information

Output Current:
6.5 A
Logic Type:
PWM
Package Type:
SOIC
Supply Voltage:
20V
Pin Count:
14
Voltage - Output Supply:
32V
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Propagation Delay tpLH / tpHL (Max):
90ns, 90ns
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
VDE
Package / Case:
16-SOIC (0.295", 7.50mm Width), 14 Leads
Rise / Fall Time (Typ):
12ns, 10ns
REACH Status:
REACH Unaffected
Number of Channels:
2
Pulse Width Distortion (Max):
20ns
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Common Mode Transient Immunity (Min):
100kV/µs
Qualification:
AEC-Q100
Voltage - Forward (Vf) (Typ):
-
standardLeadTime:
19 Weeks
Voltage - Isolation:
5000Vrms
Current - Output High, Low:
6.5A, 6.5A
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Supplier Device Package:
16-SOIC
Packaging:
Tape & Reel (TR)
Current - Peak Output:
6.5A
Technology:
Capacitive Coupling
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is NCV57530DWKR2G. It carries 6.5 a output current. The product is a pwm logic type. The package is a sort of soic. Features 20v supply voltage. It contains 14 pins. Output supply voltage of 32v. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It has a maximum propagation delay of 90ns, 90ns. The product has -40°c ~ 125°c operating temperature range. It is approved by vde. Moreover, the product comes in 16-soic (0.295", 7.50mm width), 14 leads. The typical rise and fall time of the product is 12ns, 10ns. In addition, it is reach unaffected. It is supplied with 2 channels. The maximum pulse width distortion is 20ns. Its typical moisture sensitivity level is 1 (unlimited). Allows a 100kv/µs of minimum common mode transient immunity. It has a long 19 weeks standard lead time. 5000vrms of isolation voltage. The high and low output current of the product is 6.5a, 6.5a. The product is available in surface mount configuration. The product is automotive, a grade of class. 16-soic is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It carries 6.5a peak current output. This product use capacitive coupling technology. The product is designated with the ear99 code number.

pdf icon
Datasheet - NCV57530DWKR2G(Technical Reference)
pdf icon
NCD57530, NCV57530, NCD57540, NCV57540(Datasheets)
