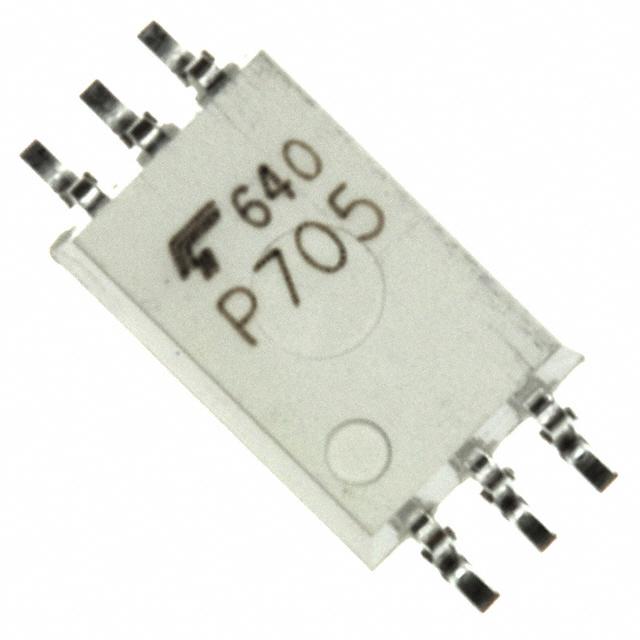

Toshiba Semiconductor and Storage TLP705(TP,F)

TLP705-TP-F- Toshiba Semiconductor and Storage TLP705(TP,F)
TLP705(TP,F)
Toshiba Semiconductor and Storage

Product Information

Voltage - Output Supply:
10V ~ 20V
HTSUS:
8541.49.8000
RoHS Status:
RoHS Compliant
Propagation Delay tpLH / tpHL (Max):
170ns, 170ns
Operating Temperature:
-40°C ~ 100°C
Approval Agency:
UR
Package / Case:
6-SOIC (0.268", 6.80mm Width)
edacadModel:
TLP705(TP,F) Models
Rise / Fall Time (Typ):
-
Current - DC Forward (If) (Max):
20 mA
Number of Channels:
1
edacadModelUrl:
/en/models/1121531
Current - Output High, Low:
300mA, 300mA
Package:
Tape & Reel (TR)
Pulse Width Distortion (Max):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Common Mode Transient Immunity (Min):
10kV/µs
Voltage - Forward (Vf) (Typ):
1.6V
Voltage - Isolation:
5000Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-SDIP Gull Wing
Current - Peak Output:
450mA
Technology:
Optical Coupling
Base Product Number:
TLP705
ECCN:
EAR99
Checking for live stock

This is manufactured by Toshiba Semiconductor and Storage. The manufacturer part number is TLP705(TP,F). Output supply voltage of 10v ~ 20v. It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs compliant. It has a maximum propagation delay of 170ns, 170ns. The product has -40°c ~ 100°c operating temperature range. It is approved by ur. Moreover, the product comes in 6-soic (0.268", 6.80mm width). The maximum DC forward current of the product is 20 ma. It is supplied with 1 channels. The high and low output current of the product is 300ma, 300ma. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). Allows a 10kv/µs of minimum common mode transient immunity. The typical forward voltage (Vf) of the product is 1.6v. 5000vrms of isolation voltage. The product is available in surface mount configuration. 6-sdip gull wing is the supplier device package value. It carries 450ma peak current output. This product use optical coupling technology. Moreover, it corresponds to tlp705, a base product number of the product. The product is designated with the ear99 code number.
