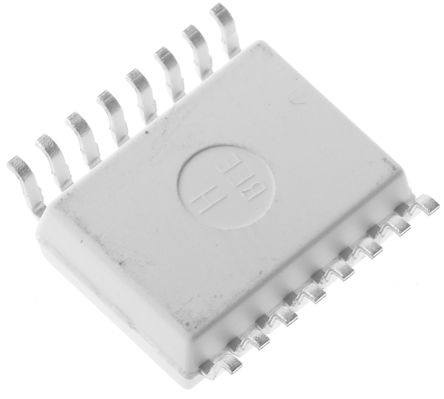

Broadcom ACPL-798J-000E, Sigma-Delta Modulator, 3 → 5.5 (VDD2) V, 4.5 → 5.5 (VDD1) V, 16-Pin SOIC

ACPL-798J-000E Broadcom , Sigma-Delta Modulator, 3 → 5.5 (VDD2) V, 4.5 → 5.5 (VDD1) V, 16-Pin SOIC
ACPL-798J-000E
Broadcom

Product Information

Dimensions:
10.31 x 7.49 x 3.5mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Typical Single Supply Voltage:
3 → 5.5 (VDD2) V, 4.5 → 5.5 (VDD1) V
Height:
3.5mm
Width:
7.49mm
Length:
10.31mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+105 °C
Pin Count:
16
RoHs Compliant
Checking for live stock

This is Sigma-Delta Modulator 3 → 5.5 (VDD2) V 4.5 → 5.5 (VDD1) V 16-Pin SOIC manufactured by Broadcom. The manufacturer part number is ACPL-798J-000E. The given dimensions of the product include 10.31 x 7.49 x 3.5mm. The product is available in surface mount configuration. It is a type of single power supply. It has a typical single supply voltage of 3 → 5.5 (vdd2) v, 4.5 → 5.5 (vdd1) v. In addition, the height is 3.5mm. Furthermore, the product is 7.49mm wide. Its accurate length is 10.31mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +105 °c. It contains 16 pins.

pdf icon
ACPL-798J, Optically Isolated Sigma-Delta Modulator with LVDS Interface(Technical Reference)
