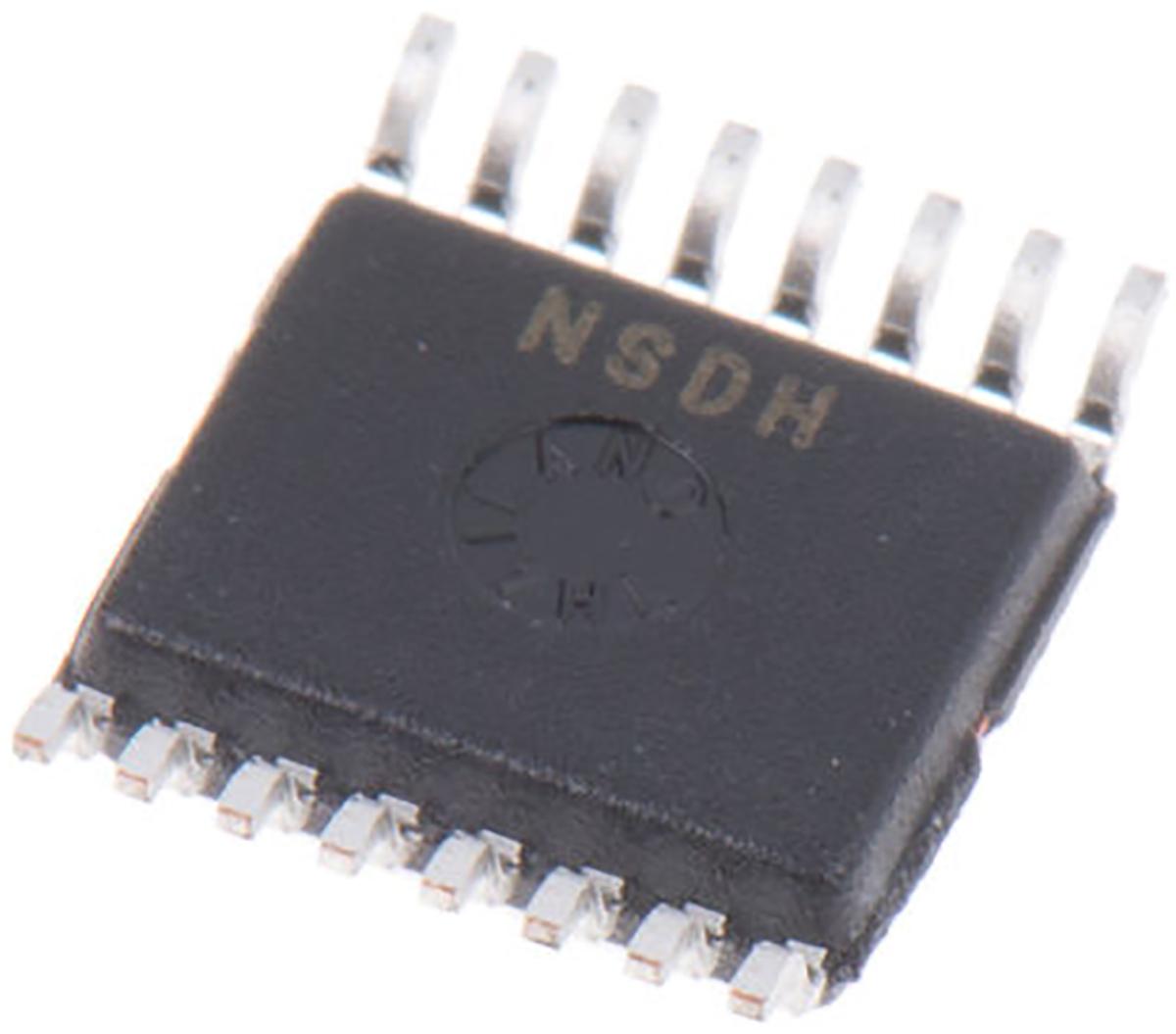

Analog Devices ADUM3190ARQZ, Isolation Amplifier, 3 → 20 V 2-channel, 16-Pin QSOP

ADUM3190ARQZ Analog Devices , Isolation Amplifier, 3 → 20 V 2-channel, 16-Pin QSOP
ADUM3190ARQZ
Analog Devices

Product Information

Dimensions:
5 x 4.01 x 1.65mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Number of Channels per Chip:
2
Maximum Voltage Gain:
80dB
Height:
1.65mm
Typical Single Supply Voltage:
3 → 20 V
Width:
4.01mm
Length:
5mm
Package Type:
QSOP
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
16
RoHs Compliant
Checking for live stock

This is Isolation Amplifier 3 → 20 V 2-channel 16-Pin QSOP manufactured by Analog Devices. The manufacturer part number is ADUM3190ARQZ. The given dimensions of the product include 5 x 4.01 x 1.65mm. The product is available in surface mount configuration. It is a type of single power supply. It comprises 2 channels per chip. It has a maximum 80db voltage gain . In addition, the height is 1.65mm. It has a typical single supply voltage of 3 → 20 v. Furthermore, the product is 4.01mm wide. Its accurate length is 5mm. The package is a sort of qsop. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 16 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ADUM3190ARQZ on website for other similar products.
We accept all major payment methods for all products including ET14057418. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with ADUM3190ARQZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Isolation Amplifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices ADUM3190ARQZ, Isolation Amplifier, 3 → 20 V 2-channel, 16-Pin QSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices ADUM3190ARQZ, Isolation Amplifier, 3 → 20 V 2-channel, 16-Pin QSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14057418 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14057418.
Yes. We ship ADUM3190ARQZ Internationally to many countries around the world.
