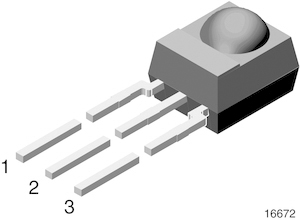

Vishay TSOP14436, 36kHz IR Receiver ±45 °, 30m Range, 2.5V - 5V, Through Hole, 6 x 5.6 x 6.95mm

TSOP14436 Vishay , 36kHz IR Receiver ±45 °, 30m Range, 2.5V - 5V, Through Hole, 6 x 5.6 x 6.95mm
Vishay

Product Information

Dimensions:
6 x 5.6 x 6.95mm
Daylight Filter Type:
Epoxy Package
Width:
5.6mm
Maximum Supply Voltage:
5.5V
Maximum Transmission Distance:
30m
Operating Temperature Range:
-25 → +85°C
Minimum Supply Voltage:
2.5V
Package Type:
TSOP
Number of Pins:
3
Maximum Operating Temperature:
+85°C
Output Signal Type:
Demodulated
Carrier Frequency:
36kHz
Supply Voltage Range:
2.5 → 5.5 V
Length:
6mm
Components:
Photo Detector, Preamplifier
Output Current:
5mA
Mounting Type:
Through Hole
Series:
TSOP14
Height:
6.95mm
Minimum Operating Temperature:
-25°C
Angle of Half Transmission Distance:
±45 °
RoHs Compliant
Checking for live stock

This is 36kHz IR Receiver ±45 ° 30m Range 2.5V - 5V Through Hole 6 x 5.6 x 6.95mm manufactured by Vishay. The manufacturer part number is TSOP14436. The given dimensions of the product include 6 x 5.6 x 6.95mm. It has a daylight filter of epoxy package type . Furthermore, the product is 5.6mm wide. The product requires a maximum 5.5v supply voltage . Whereas, the maximum transmission distance is 30m . The product has -25 → +85°c of operating temperature range. It has a minimum 2.5v supply voltage . The package is a sort of tsop. It is comprised of 3 pins. It has a maximum operating temperature of +85°c. The output signal is a kind of demodulated. It has about 36khz carrier frequency . It has a typical 2.5 → 5.5 v supply voltage range . Its accurate length is 6mm. It has photo detector, preamplifier components included . It carries 5ma output current. The product is available in through hole configuration. The product tsop14, is a highly preferred choice for users. In addition, the height is 6.95mm. Whereas, the minimum operating temperature of the product is -25°c. It has ±45 ° angle of half transmission distance .
