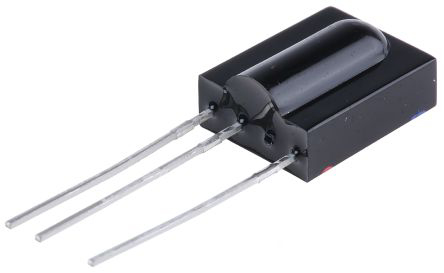

Vishay TSOP31436, 36kHz IR Receiver, 950nm ±45 °, 45m Range, 2.5V - 5V, Through Hole, 10 x 5.8 x 12.5mm

Enrgtech Part No: ET16723997
|
Manufacturer Part No:
TSOP31436
|
Manufacturer: Vishay

TSOP31436 Vishay , 36kHz IR Receiver, 950nm ±45 °, 45m Range, 2.5V - 5V, Through Hole, 10 x 5.8 x 12.5mm

Product Information

Minimum Supply Voltage:

2.5V

Maximum Transmission Distance:

45m

Dimensions:

10 x 5.8 x 12.5mm

Mounting Type:

Through Hole

Carrier Frequency:

36kHz

Daylight Filter Type:

Epoxy Package

Angle of Half Transmission Distance:

±45 °

Supply Voltage Range:

2.5 → 5.5 V

Height:

12.5mm

Width:

5.8mm

Length:

10mm

Number of Pins:

Checking for live stock

This is 36kHz IR Receiver 950nm ±45 ° 45m Range 2.5V - 5V Through Hole 10 x 5.8 x 12.5mm manufactured by Vishay. The manufacturer part number is TSOP31436. It has a minimum 2.5v supply voltage . Whereas, the maximum transmission distance is 45m . The given dimensions of the product include 10 x 5.8 x 12.5mm. The product is available in through hole configuration. It has about 36khz carrier frequency . It has a daylight filter of epoxy package type . It has ±45 ° angle of half transmission distance . It has a typical 2.5 → 5.5 v supply voltage range . In addition, the height is 12.5mm. Furthermore, the product is 5.8mm wide. Its accurate length is 10mm. It is comprised of 3 pins. It has photo detector, preamplifier components included . Furthermore, its wavelength of peak sensitivity is 950nm . The product requires a maximum 5.5v supply voltage . It carries 5ma output current.

IR Receiver Brochure(Technical Reference)

Assembly Instructions(Technical Reference)

IR Transmission in Free Ambient(Technical Reference)

Mechanical Design Notes(Technical Reference)

IR Receiver Part Numbers(Technical Reference)

TSOP312.., TSOP314.., IR Receiver Modules for Remote Control Systems(Technical Reference)

Circuit Description(Technical Reference)

IR Remote Control Introduction(Technical Reference)

Datasheet(Technical Reference)

Using Vishay Infrared Receivers in a Wi-Fi Environment(Technical Reference)

Data Formats for IR Remote Control(Technical Reference)

Markings on IR Receiver Modules(Technical Reference)

Disturbance Sources(Technical Reference)
