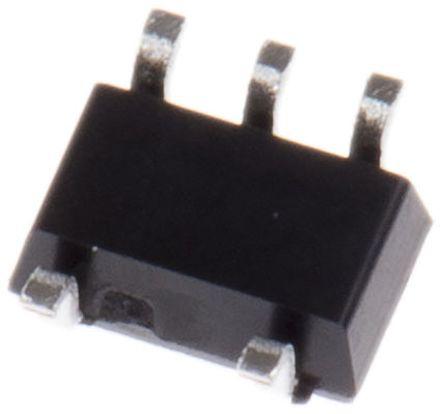

NXP 74LVC1GU04GW Inverter, 1.65 → 5.5 V TSSOP, 5-Pin

74LVC1GU04GW NXP  Inverter, 1.65 → 5.5 V TSSOP, 5-Pin
74LVC1GU04GW
Nexperia

Product Information

Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
1.7 ns @ 2.7 V
Minimum Operating Supply Voltage:
1.65 V
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
LVC
Height:
1mm
Width:
1.35mm
Length:
2.25mm
Package Type:
TSSOP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
RoHs Compliant
Checking for live stock

This is NXP Inverter 1.65 → 5.5 V TSSOP 5-Pin manufactured by Nexperia. The manufacturer part number is 74LVC1GU04GW. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 1.7 ns @ 2.7 v maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is lvc. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of tssop. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.

pdf icon
74LVC1GU04(Technical Reference)
