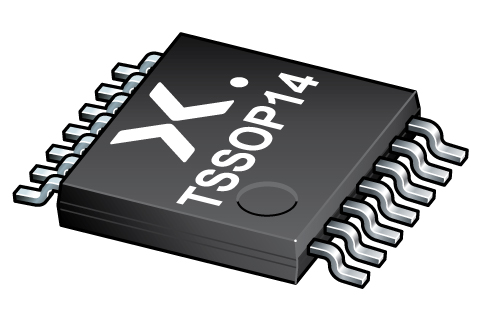

Hex Inverter SchmittTrigger CMOS TSSOP14

74HC14PW-118 Hex Inverter SchmittTrigger CMOS TSSOP14
Nexperia

Product Information

Dimensions:
5.1 x 4.5 x 0.95mm
Logic Family:
74HC
Width:
4.5mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Maximum Propagation Delay Time @ Maximum CL:
190 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
Single Ended
Package Type:
TSSOP
Number of Elements per Chip:
6
Maximum Operating Temperature:
+125 °C
Length:
5.1mm
Pin Count:
14
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
6 V
Logic Function:
Inverter Schmitt Trigger
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Hex Inverter SchmittTrigger CMOS TSSOP14 manufactured by Nexperia. The manufacturer part number is 74HC14PW,118. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The logic family is 74hc. Furthermore, the product is 4.5mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 5.2ma of max. low level output current. While a -5.2ma of maximum high level output current. It provides up to 190 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has asingle ended output. The package is a sort of tssop. It consists of 6 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 5.1mm. It contains 14 pins. The product is available in surface mount configuration. It has 6 v maximum operating supply voltage. The primary function of logic includes inverter schmitt trigger. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
