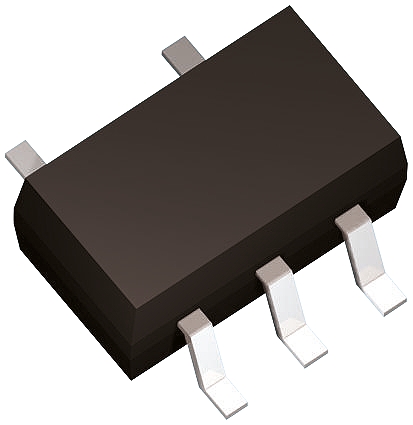

NXP 74LVC1G14GV,125 Schmitt Trigger Inverter, 1.65 → 5.5 V, 5-Pin SC-74A

74LVC1G14GV-125 NXP 74LVC1G14GV,125 Schmitt Trigger Inverter, 1.65 → 5.5 V, 5-Pin SC-74A
Nexperia

Product Information

Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
3.1 x 1.7 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
14 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
LVC
Height:
1mm
Width:
1.7mm
Length:
3.1mm
Package Type:
SC-74A
Number of Elements per Chip:
1
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
RoHs Compliant
Checking for live stock

This is NXP Schmitt Trigger Inverter 1.65 → 5.5 V 5-Pin SC-74A manufactured by Nexperia. The manufacturer part number is 74LVC1G14GV,125. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. The given dimensions of the product include 3.1 x 1.7 x 1mm. The product is available in surface mount configuration. It provides up to 14 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is lvc. In addition, the height is 1mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. The package is a sort of sc-74a. It consists of 1 elements per chip. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.

pdf icon
74LVC1G14GV Single Schmitt-Trigger Inverter Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
