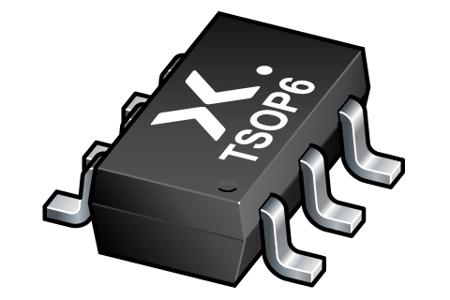

Nexperia 74LVC2G14GV,125 Dual Schmitt Trigger CMOS Inverter, 6-Pin TSOP

74LVC2G14GV-125 Nexperia 74LVC2G14GV,125 Dual Schmitt Trigger CMOS Inverter, 6-Pin TSOP
Nexperia

Product Information

Dimensions:
3.1 x 1.7 x 1mm
Logic Family:
74LVC
Width:
1.7mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Maximum Propagation Delay Time @ Maximum CL:
12 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Output Type:
Schmitt Trigger
Package Type:
TSOP
Number of Elements per Chip:
2
Maximum Operating Temperature:
+125 °C
Length:
3.1mm
Pin Count:
6
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
5.5 V
Logic Function:
Inverter
Height:
1mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Dual Schmitt Trigger CMOS Inverter 6-Pin TSOP manufactured by Nexperia. The manufacturer part number is 74LVC2G14GV,125. The given dimensions of the product include 3.1 x 1.7 x 1mm. The logic family is 74lvc. Furthermore, the product is 1.7mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 12 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has aschmitt trigger output. The package is a sort of tsop. It consists of 2 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 3.1mm. It contains 6 pins. The product is available in surface mount configuration. It has 5.5 v maximum operating supply voltage. The primary function of logic includes inverter. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
