NXP 74LVC2G04GW,125 Dual Inverter, 1.65 → 5.5 V, 6-Pin SC-88

74LVC2G04GW-125 NXP 74LVC2G04GW,125 Dual Inverter, 1.65 → 5.5 V, 6-Pin SC-88
74LVC2G04GW,125
Nexperia

Product Information

Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Maximum Operating Supply Voltage:
5.5 V
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
7 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Logic Function:

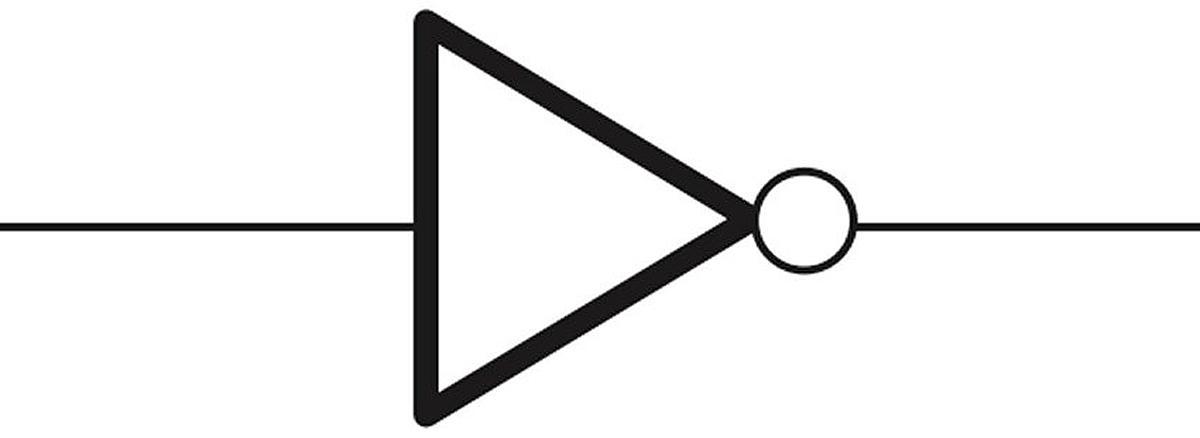

Inverter
Propagation Delay Test Condition:
50pF
Output Type:
TTL
Height:
1mm
Width:
1.35mm
Length:
2.2mm
Package Type:
SC-88
Logic Family:
LVC
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+125 °C
Pin Count:
6
Number of Elements per Chip:
2
RoHs Compliant
Checking for live stock

This is NXP Dual Inverter 1.65 → 5.5 V 6-Pin SC-88 manufactured by Nexperia. The manufacturer part number is 74LVC2G04GW,125. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It has 5.5 v maximum operating supply voltage. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 7 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. Furthermore, it has attl output. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.2mm. The package is a sort of sc-88. The logic family is lvc. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It has a maximum operating temperature of +125 °c. It contains 6 pins. It consists of 2 elements per chip.
