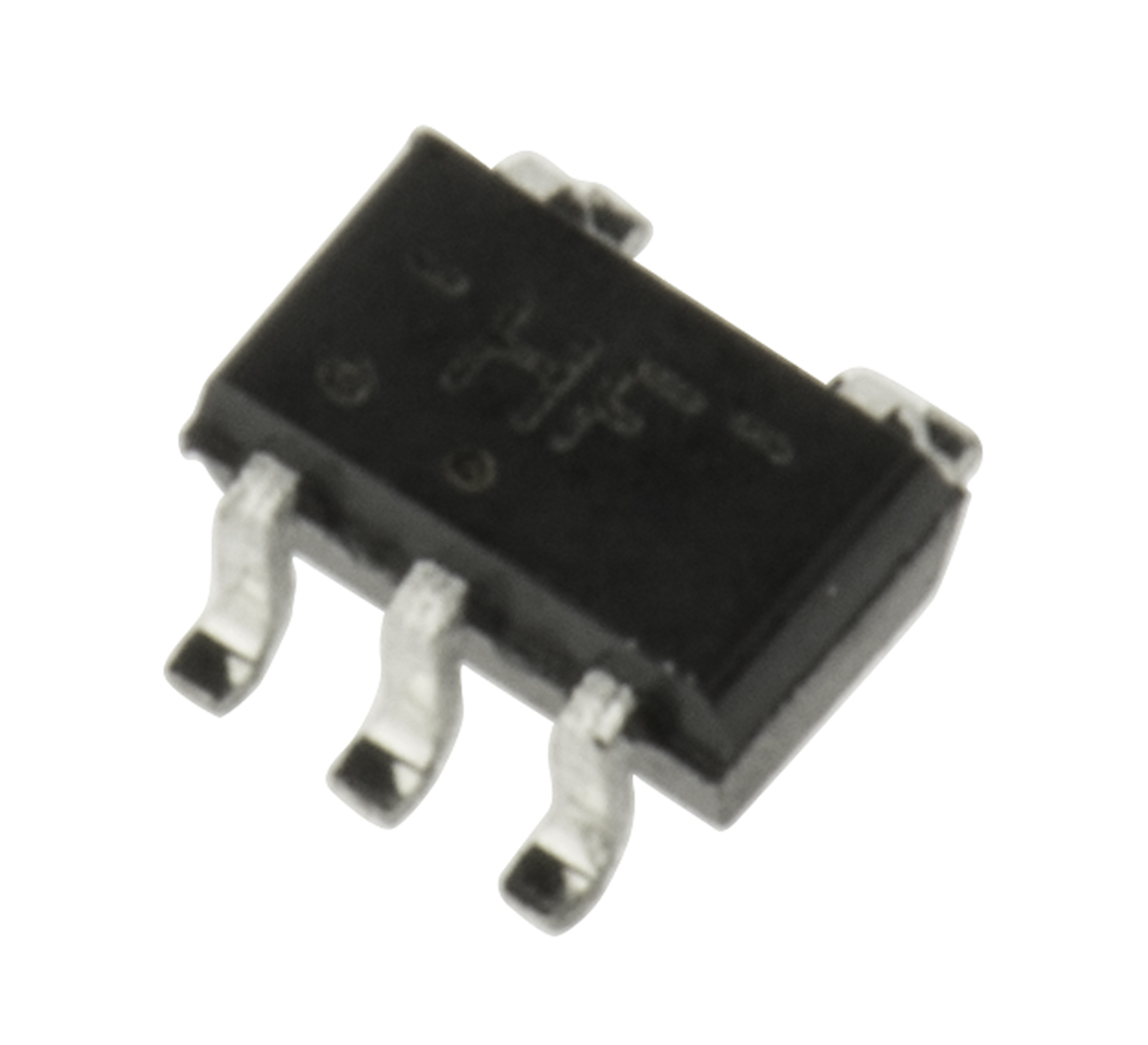

NXP 74HC1G14GW,125 Schmitt Trigger Inverter, 2 → 6 V, 5-Pin TSSOP

74HC1G14GW-125 NXP 74HC1G14GW,125 Schmitt Trigger Inverter, 2 → 6 V, 5-Pin TSSOP
74HC1G14GW,125
Nexperia

Product Information

Maximum Low Level Output Current:
2.6mA
Maximum High Level Output Current:
-2.6mA
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
190ns
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
HC
Height:
1mm
Width:
1.35mm
Length:
2.25mm
Package Type:
TSSOP
Number of Elements per Chip:
1
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
6 V
RoHs Compliant
Checking for live stock

This is NXP Schmitt Trigger Inverter 2 → 6 V 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74HC1G14GW,125. On the other hand, it is featured with 2.6ma of max. low level output current. While a -2.6ma of maximum high level output current. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 190ns maximum propagation delay time. While its minimum operating supply voltage is 2 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is hc. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of tssop. It consists of 1 elements per chip. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 6 v maximum operating supply voltage.
