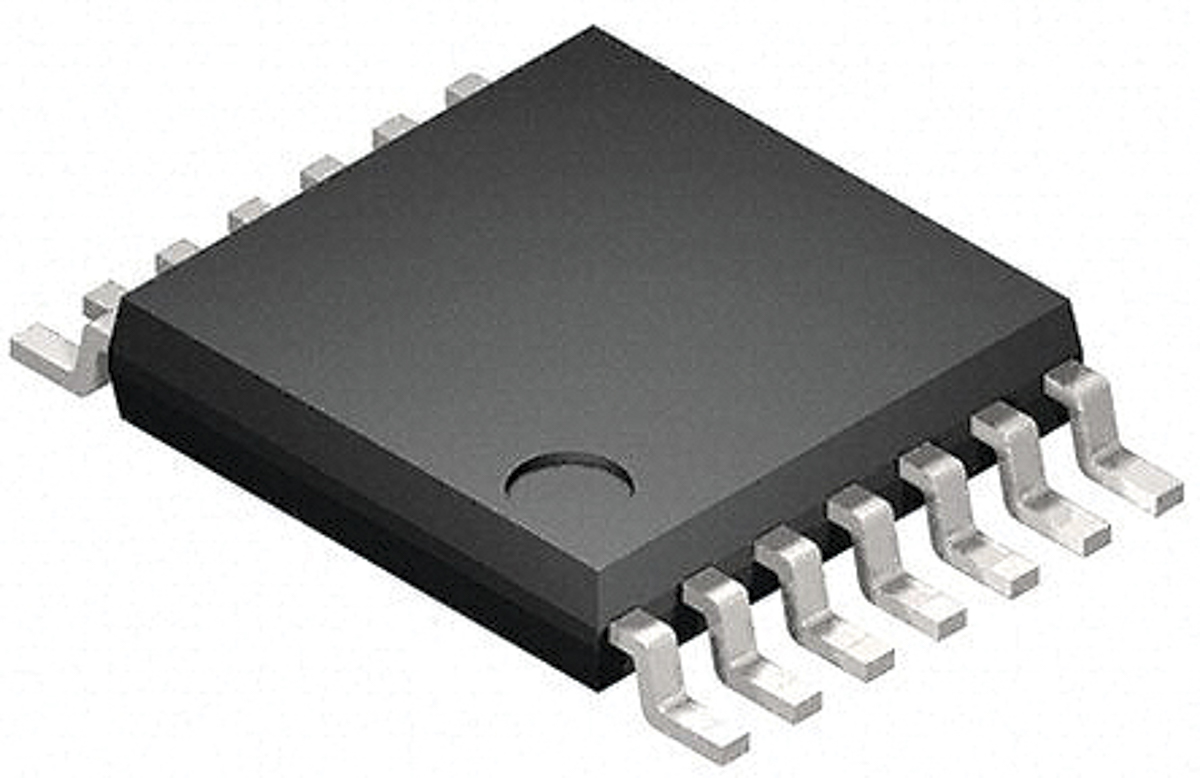

This is Hex Schmitt Trigger TTL CMOS Inverter 14-Pin TSSOP manufactured by Toshiba. The manufacturer part number is 74VHCT14AFT. The given dimensions of the product include 5 x 4.4 x 1mm. The logic family is 74vhc. Furthermore, the product is 4.4mm wide. It carries cmos input type. The product complies with automotive standard - aec-q100. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. It provides up to 12 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. Furthermore, it has attl output. The package is a sort of tssop. It consists of 6 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 5mm. It contains 14 pins. The product is available in surface mount configuration. It has 5.5 v maximum operating supply voltage. The primary function of logic includes inverter. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
