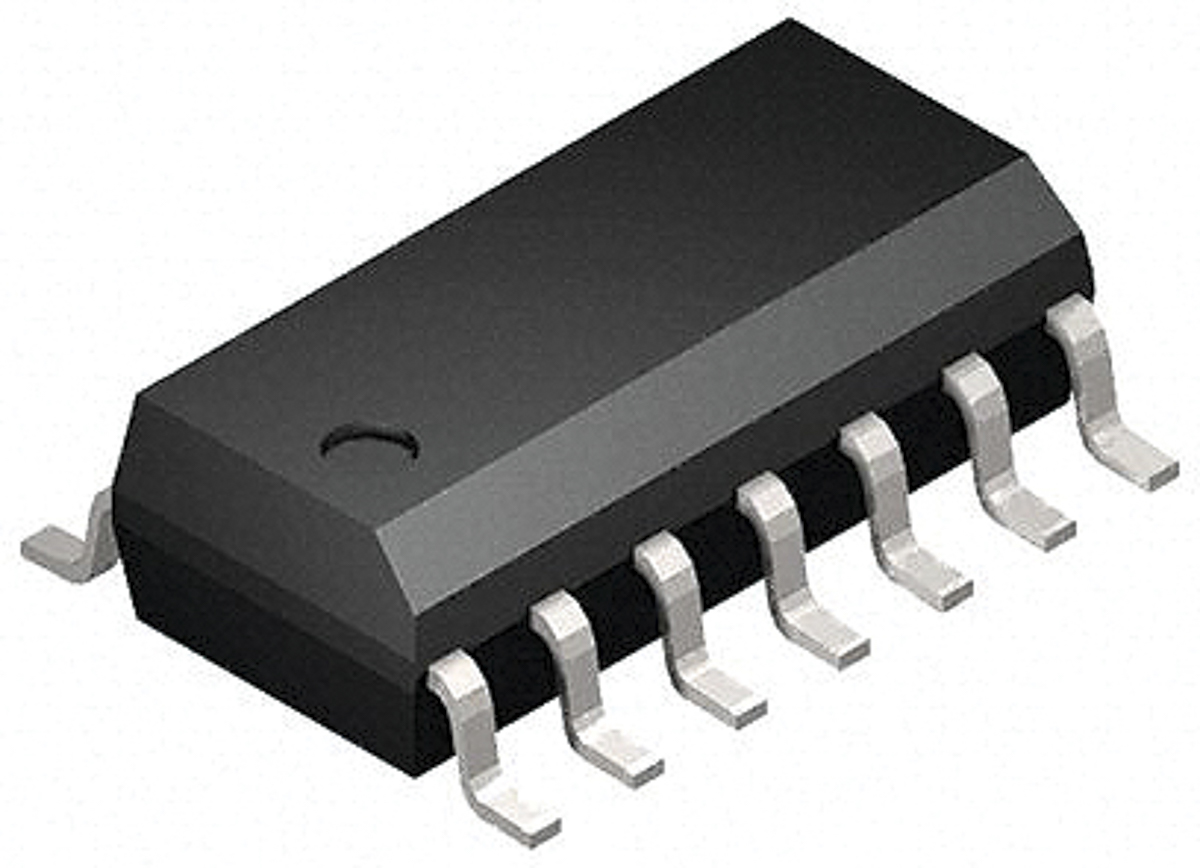

Toshiba 74HC05D, Hex, Open Drain CMOS Inverter, 14-Pin SOIC

74HC05D Toshiba , Hex, Open Drain CMOS Inverter, 14-Pin SOIC
Toshiba

Product Information

Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Dimensions:
8.95 x 3.9 x 1.38mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
135 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Output Type:
Open Drain
Height:
1.38mm
Width:
3.9mm
Length:
8.95mm
Package Type:
SOIC
Logic Family:
74HC
Input Type:
CMOS
Maximum Operating Supply Voltage:
6 V
Maximum Operating Temperature:
+125 °C
Pin Count:
14
Number of Elements per Chip:
6
RoHs Compliant
Checking for live stock

This is Hex Open Drain CMOS Inverter 14-Pin SOIC manufactured by Toshiba. The manufacturer part number is 74HC05D. On the other hand, it is featured with 5.2ma of max. low level output current. While a -5.2ma of maximum high level output current. The given dimensions of the product include 8.95 x 3.9 x 1.38mm. The product is available in surface mount configuration. It provides up to 135 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. Furthermore, it has aopen drain output. In addition, the height is 1.38mm. Furthermore, the product is 3.9mm wide. Its accurate length is 8.95mm. The package is a sort of soic. The logic family is 74hc. It carries cmos input type. It has 6 v maximum operating supply voltage. It has a maximum operating temperature of +125 °c. It contains 14 pins. It consists of 6 elements per chip.
