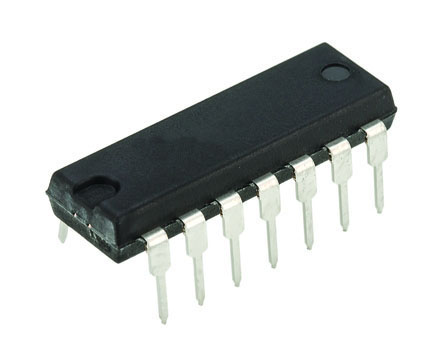

Texas Instruments SN74ALS04BNE4, Hex Inverter, 4.5 → 5.5 V, 14-Pin PDIP

SN74ALS04BNE4 Texas Instruments , Hex Inverter, 4.5 → 5.5 V, 14-Pin PDIP
Texas Instruments

Product Information

Maximum Low Level Output Current:
8mA
Maximum High Level Output Current:
-0.4mA
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Maximum Propagation Delay Time @ Maximum CL:
11 ns @ 4.5 V → 5.5 V
Minimum Operating Supply Voltage:
4.5 V
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
ALS
Height:
4.57mm
Width:
6.35mm
Length:
19.3mm
Package Type:
PDIP
Number of Elements per Chip:
6
Minimum Operating Temperature:
0 °C
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+70 °C
Pin Count:
14
Maximum Operating Supply Voltage:
5.5 V
RoHs Compliant
Checking for live stock

This is Hex Inverter 4.5 → 5.5 V 14-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is SN74ALS04BNE4. On the other hand, it is featured with 8ma of max. low level output current. While a -0.4ma of maximum high level output current. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. The product is available in through hole configuration. It provides up to 11 ns @ 4.5 v → 5.5 v maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is als. In addition, the height is 4.57mm. Furthermore, the product is 6.35mm wide. Its accurate length is 19.3mm. The package is a sort of pdip. It consists of 6 elements per chip. Whereas, the minimum operating temperature of the product is 0 °c. Schmitt Trigger Input - no. It has a maximum operating temperature of +70 °c. It contains 14 pins. It has 5.5 v maximum operating supply voltage.
