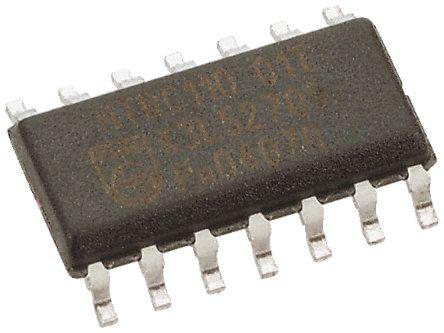

DiodesZetex 74LV14AS14-13, Hex Schmitt Trigger, Push-Pull CMOS Inverter, 2 → 5.5 V, 14-Pin SOIC

74LV14AS14-13 DiodesZetex , Hex Schmitt Trigger, Push-Pull CMOS Inverter, 2 → 5.5 V, 14-Pin SOIC
DiodesZetex

Product Information

Dimensions:
8.74 x 3.99 x 1.48mm
Logic Family:
LV
Width:
3.99mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
12mA
Maximum High Level Output Current:
-12mA
Maximum Propagation Delay Time @ Maximum CL:
12 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
Push-Pull
Package Type:
SOIC
Number of Elements per Chip:
6
Maximum Operating Temperature:
+125 °C
Length:
8.74mm
Pin Count:
14
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
5.5 V
Logic Function:
Inverter
Height:
1.48mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Hex Schmitt Trigger Push-Pull CMOS Inverter 2 → 5.5 V 14-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is 74LV14AS14-13. The given dimensions of the product include 8.74 x 3.99 x 1.48mm. The logic family is lv. Furthermore, the product is 3.99mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 12ma of max. low level output current. While a -12ma of maximum high level output current. It provides up to 12 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has apush-pull output. The package is a sort of soic. It consists of 6 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 8.74mm. It contains 14 pins. The product is available in surface mount configuration. It has 5.5 v maximum operating supply voltage. The primary function of logic includes inverter. In addition, the height is 1.48mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
