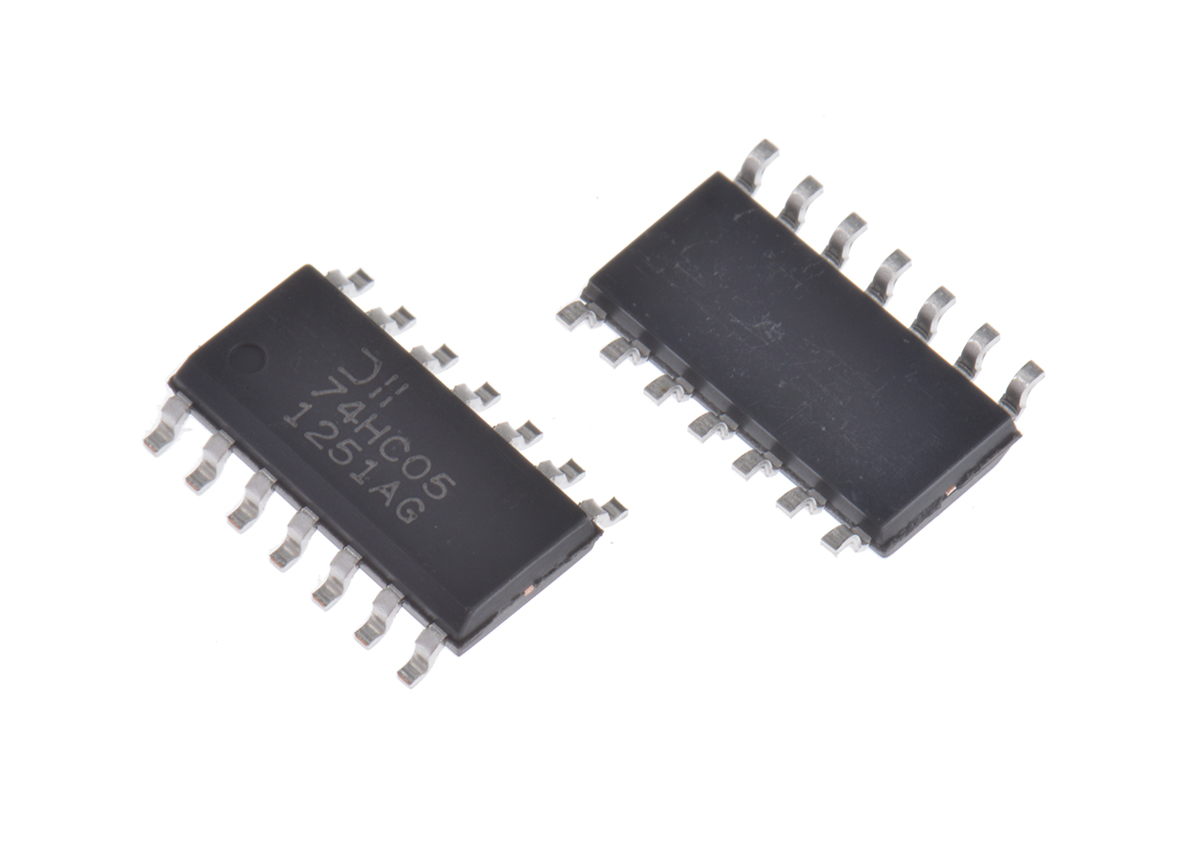

This is Hex Schmitt Trigger Open Drain Inverter 2 → 6 V 14-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is 74HC05S14-13. On the other hand, it is featured with 5.2ma of max. low level output current. It has 6 v maximum operating supply voltage. The given dimensions of the product include 8.74 x 3.99 x 1.48mm. The product is available in surface mount configuration. It provides up to 125 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. Furthermore, it has aopen drain output. In addition, the height is 1.48mm. Furthermore, the product is 3.99mm wide. Its accurate length is 8.74mm. The package is a sort of soic. The logic family is hc. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 14 pins. It consists of 6 elements per chip.
For more information please check the datasheets.
