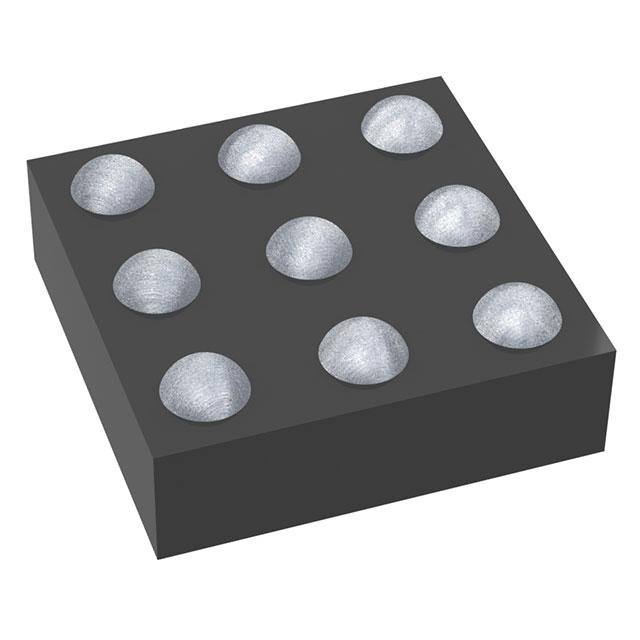

NCS20282FCTTAG onsemi, Dual Operational, Op Amp, RRIO, 7MHz, 2.5 → 5.5 V, 9-Pin WLCSP

NCS20282FCTTAG  onsemi, Dual Operational, Op Amp, RRIO, 7MHz, 2.5 → 5.5 V, 9-Pin WLCSP
NCS20282FCTTAG
onsemi

Product Information

Mounting Type:
Surface Mount
Power Supply Type:
Dual
Number of Channels per Chip:
2
Rail to Rail:
Rail to Rail Input/Output
Typical Gain Bandwidth Product:
7MHz
Typical Single Supply Voltage:
2.5 → 5.5 V
Package Type:
WLCSP
Amplifier Type:
Dual Operational
Pin Count:
9
HTSUS:
8542.33.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
10 mA
Operating Temperature:
-40°C ~ 125°C (TA)
Package / Case:
9-XFBGA, WLCSP
Current - Input Bias:
50 pA
Voltage - Input Offset:
300 µV
Voltage - Supply Span (Max):
5.5 V
Voltage - Supply Span (Min):
2.5 V
REACH Status:
REACH Unaffected
Output Type:
Rail-to-Rail
Current - Supply:
850µA (x2 Channels)
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
5V/µs
standardLeadTime:
6 Weeks
Number of Circuits:
2
Gain Bandwidth Product:
7 MHz
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
9-WLCSP (1.02x1.02)
Amplifier Type:
General Purpose
Base Product Number:
NCS20282
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Dual Operational Op Amp RRIO 7MHz 2.5 → 5.5 V 9-Pin WLCSP manufactured by onsemi. The manufacturer part number is NCS20282FCTTAG. The product is available in surface mount configuration. It is a type of dual power supply. It comprises 2 channels per chip. Rail to rail options include rail to rail input/output. Features 7mhz typical gain bandwidth. It has a typical single supply voltage of 2.5 → 5.5 v. The package is a sort of wlcsp. It is a sort of a dual operational amplifier. It contains 9 pins. It is assigned with possible HTSUS value of 8542.33.0001. The product is rohs3 compliant. It carries 10 ma output or channel current. The product has -40°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in 9-xfbga, wlcsp. The typical current - input bias includes 50 pa. The input offset voltage is 300 µv. The maximum voltage supply span of the product is 5.5 v. While the minimum voltage supply is 2.5 v. In addition, it is reach unaffected. Furthermore, it has arail-to-rail output. The current - supply of a bespoke product is 850µa (x2 channels). It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The 5v/µs is the slew rate of the product. It has a long 6 weeks standard lead time. It integrates 2 circuits. The gain bandwidth product is 7 mhz. 9-wlcsp (1.02x1.02) is the supplier device package value. It is a sort of a general purpose amplifier. Moreover, it corresponds to ncs20282, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - NCS20282FCTTAG(Technical Reference)
pdf icon
NCS20282(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
