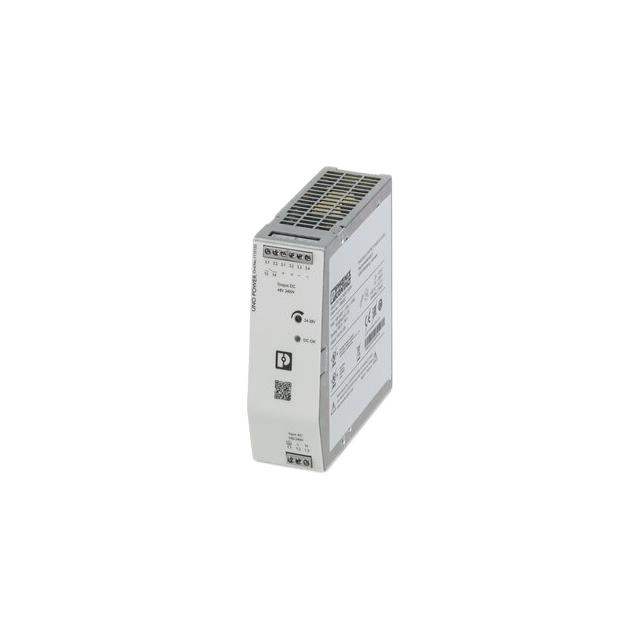

Phoenix Contact 1110155

1110155 Phoenix Contact
1110155
1110155
ET24769780
ET24769780
Phoenix Contact

Product Information

Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac
Width:
45mm
MTBF:
>1000000h
Electrical Phase:
1
Type:
Switched Mode
Model:
UNO2-PS/1AC/48DC/240W
Standards Met:
cULus Recognised
Efficiency:
93%
Input Voltage:
100 → 240V ac
Output Voltage Adjustment Range:
42 → 56V
Depth:
129mm
Special Features:
Energy Saving, High Degree of Efficiency
Mounting Type:
DIN Rail Mount
Output Current:
5A
Series:
UNO POWER
Height:
130mm
Output Voltage:
48V dc
Power Rating:
240W
HTSUS:
8504.40.9530
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
48V
Power (Watts):
240W
Current - Output (Max):
5A
Approval Agency:
cULus, cURus, EAC
Input Type:
AC
title:
1110155
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
93%
Applications:
Laboratory
Manufacturer:
Phoenix Contact
DC Voltage - Input (Max):
-
DC Voltage - Input (Min):
-
Minimum Load Required:
-
Size / Dimension:
4.92" L x 1.77" W x 5.12" H (125.0mm x 45.0mm x 130.0mm)
standardLeadTime:
8 Weeks
Voltage - Isolation:
3 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Adjustable Output, PFC
Series:
-
Operating Temperature:
-25°C ~ 70°C (With Derating)
Packaging:
Bulk
Standard Number:
61010-1
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1110155. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac input voltage. Furthermore, the product is 45mm wide. The MTBF values include >1000000h. Its electrical phase configuration includes 1. It comes in switched mode configuration. It has a model uno2-ps/1ac/48dc/240w. The product complies with all safety standards, such as culus recognised. It is a highly efficient product with an 93% of high efficiency. Its input voltage is 100 → 240v ac. It has 42 → 56v of output voltage adjustment range. The product comes in 129mm depth. The product also provides special features, such as energy saving, high degree of efficiency. The product is available in din rail mount configuration. It carries 5a output current. The product uno power, is a highly preferred choice for users. In addition, the height is 130mm. Features a 48v dc output voltage. Feature 240w of power rating. It is assigned with possible HTSUS value of 8504.40.9530. The product is rohs3 compliant. It has a 48v output voltage. The product features power and watts of 240w. The maximum product's output current is 5a. It is approved by culus, curus, eac. It carries ac input type. In addition, it is reach affected. The product is widely employed in laboratory. The phoenix contact's product offers user-desired applications. The product's diameters include 4.92" l x 1.77" w x 5.12" h (125.0mm x 45.0mm x 130.0mm). It has a long 8 weeks standard lead time. 3 kv of isolation voltage. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include adjustable output, pfc. The product has -25°c ~ 70°c (with derating) operating temperature range. In addition, bulk is the available packaging type of the product. Standard number include: 61010-1. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
