Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Dimensions:
70 x 125 x 130mm
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac, dc
Width:
70mm
MTBF:
1100000 h @25 °C, 317000 h @ 60 °C, 676000 h @ 40 °C
Electrical Phase:
1
Type:
Switched Mode
Model:

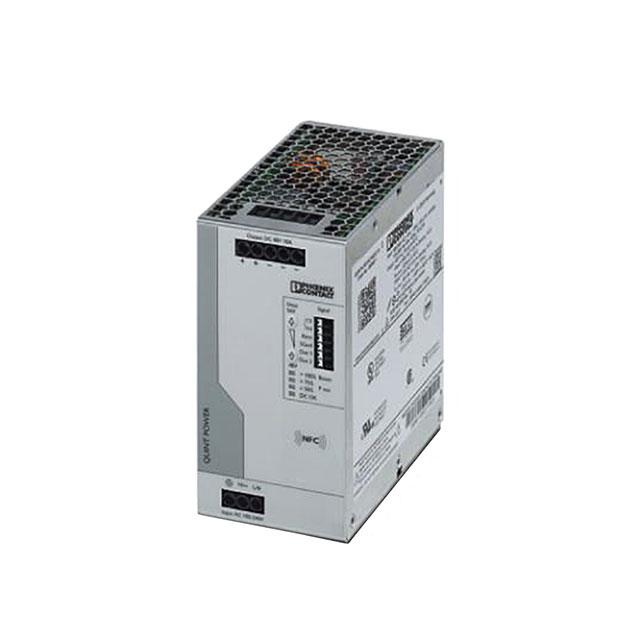

QUINT4-PS/1AC/48DC/10
Standards Met:
cUL, cUL Recognised, cULus, EAC, IECEE CB Scheme, UL, UL Recognised
Efficiency:
95%
Input Voltage:
100 → 240 V ac / 110 → 250V dc
Number of Outputs:
1
Output Voltage Adjustment Range:
48 → 56V
Ripple And Noise:
70mV Pk-Pk
Hazardous Area Certification:
Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D
Depth:
125mm
Special Features:
Dynamic Boost with up to 200% for 5 Second, High-Performance QUINT POWER Power Supplies, Monitoring Indicates Critical Operating States Before Errors Occur, NFC Interface
Mounting Type:
DIN Rail Mount
Output Current:
10A
Series:
QUINT POWER
Height:
130mm
Output Voltage:
48V dc
Power Rating:
480W
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
48V
Power (Watts):
480W
Current - Output (Max):
10A
Approval Agency:
CSA, UL
Input Type:
AC
Applications:
Industrial, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
95%
Package:
Bulk
Minimum Load Required:
No
Size / Dimension:
4.80" L x 2.76" W x 5.12" H (122.0mm x 70.0mm x 130.0mm)
standardLeadTime:
8 Weeks
AC Voltage - Input:
100 ~ 240 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Remote On/Off
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99
