Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Dimensions:
32 x 90 x 99mm
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac, dc
Width:
32mm
MTBF:
1347000 h @ 25 °C, 295000 h @ 60 °C, 734000 h @ 40 °C
Electrical Phase:
1
Type:
Switched Mode

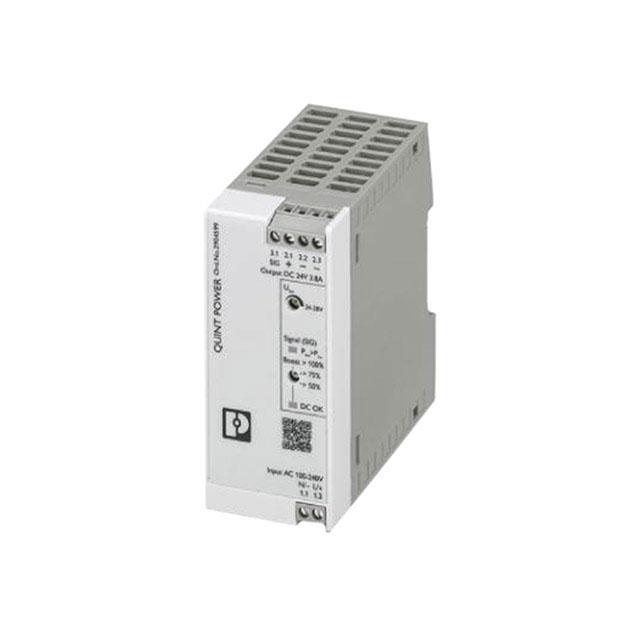

Model:
QUINT4-PS/1AC/24DC/2.5/SC
Standards Met:
cUL Recognized, cULus Recognized, EAC Certified, UL Recognized
Efficiency:
92.6%
Input Voltage:
100 → 240 V ac / 110 → 250V dc
Number of Outputs:
1
Ripple And Noise:
40mV Pk-Pk
Depth:
90mm
Special Features:
Heavy Loads with Dynamic Boost, Monitoring Indicates Critical Operating States Before Errors Occur, Power Range of up to 100 W
Mounting Type:
DIN Rail Mount
Output Current:
2.5A
Series:
QUINT POWER
Height:
99mm
Output Voltage:
24V dc
Power Rating:
60W
HTSUS:
8504.40.9520
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
60W
Current - Output (Max):
2.5A
Approval Agency:
CB, CE, UL
Input Type:
AC or DC
Applications:
ITE (Commercial), Laboratory
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
92.6%
Manufacturer:
Phoenix Contact
DC Voltage - Input (Max):
250V
DC Voltage - Input (Min):
110V
Minimum Load Required:
-
Size / Dimension:
3.54" L x 1.26" W x 3.90" H (90.0mm x 32.0mm x 99.0mm)
standardLeadTime:
8 Weeks
Voltage - Isolation:
4 kV
AC Voltage - Input:
100 ~ 240 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, PFC, Universal Input
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Packaging:
Bulk
Number of Outputs:
1
ECCN:
EAR99
