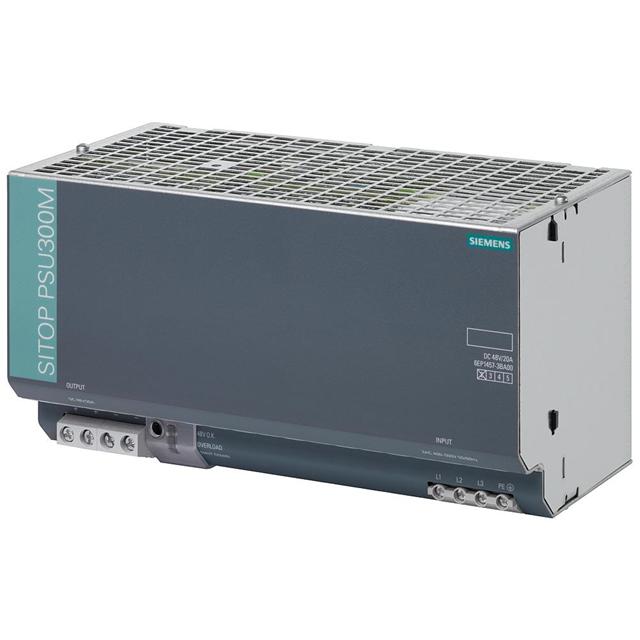

Switch Mode DIN Rail Panel Mount Power Supply, 960W, 48V dc/ 20A

6EP14573BA00 Switch Mode DIN Rail Panel Mount Power Supply, 960W, 48V dc/ 20A
6EP14573BA00
6EP14573BA00
ET14019564
ET14019564
Industrial, DIN Rail Power Supplies
Siemens

Product Information

Maximum Temperature:
+60°C
AC or DC Output Voltage:
Dc
Dimensions:
240 x 125 x 125mm
Minimum Temperature:
0°C
AC or DC Input Voltage:
Ac
Width:
125mm
Maximum Output Voltage:
48V dc
Electrical Phase:
3
Type:
Switch Mode
Load Regulation:
0.2%
Efficiency:
90%
Input Voltage:
400 → 500V ac
Output Current:
20 A
Number of Outputs:
1
Output Voltage Adjustment Range:
42 → 56V
Line Regulation:
0.1%
Ripple And Noise:
100mV Pk-Pk
Range:
SITOP
Minimum Output Voltage:
48V dc
Mounting Type:
DIN Rail
Weight:
3.2kg
Series:
SITOP PSU300M
Depth:
125mm
Height:
125mm
Output Voltage:
48 V dc
Power Rating:
960W
Maximum Input Voltage:
575V ac
Minimum Input Voltage:
320V ac
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Power (Watts):
-
Current - Output (Max):
20A
Approval Agency:
cCSAus, CE, cULus
Input Type:
AC
Applications:
Industrial, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
48V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
90%
DC Voltage - Input (Max):
-
Package:
Box
DC Voltage - Input (Min):
-
Minimum Load Required:
-
Size / Dimension:
4.92" L x 9.45" W x 4.92" H (125.0mm x 240.0mm x 125.0mm)
AC Voltage - Input:
320 ~ 500 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20
Series:
6EP1
Operating Temperature:
0°C ~ 60°C
Standard Number:
60950-1; UL 508
Number of Outputs:
1
Checking for live stock

This is Switch Mode DIN Rail Panel Mount Power Supply 960W 48V dc/ 20A manufactured by Siemens. The manufacturer part number is 6EP14573BA00. The product has +60°c maximum temperature. It has a/an dc output voltage . The given dimensions of the product include 240 x 125 x 125mm. While its minimum temperature is 0°c. It has ac input voltage. Furthermore, the product is 125mm wide. Its output voltage (maximum) includes 48v dc. Its electrical phase configuration includes 3. It comes in switch mode configuration. Load Regulation - 0.2%. It is a highly efficient product with an 90% of high efficiency. Its input voltage is 400 → 500v ac. It carries 20 a output current. Additionally, the product is supplied with 1 outputs. It has 42 → 56v of output voltage adjustment range. Has a line regulation of 0.1%. Carries 100mv pk-pk ripple and noise. It features sitop range. The product features 48v dc minimum output voltage. The product is available in din rail configuration. The typical product's weight is 3.2kg. The product sitop psu300m, is a highly preferred choice for users. The product comes in 125mm depth. In addition, the height is 125mm. Features a 48 v dc output voltage. Feature 960w of power rating. 575v ac is the maximum voltage of the bespoke product. The product has 320v ac of minimum input voltage. The product is rohs3 compliant. In addition, it is reach unaffected. The maximum product's output current is 20a. It is approved by ccsaus, ce, culus. It carries ac input type. The product is widely employed in industrial, ite (commercial). It has a 48v output voltage. It is shipped in box package . The product's diameters include 4.92" l x 9.45" w x 4.92" h (125.0mm x 240.0mm x 125.0mm). The product has an AC input voltage range of 320 ~ 500 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20. The product 6ep1, is a highly preferred choice for users. The product has 0°c ~ 60°c operating temperature range. Standard number include: 60950-1; ul 508.
