Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac
Width:
50mm
MTBF:
>1250000 h at 25 °C
Type:
Switched Mode
Model:

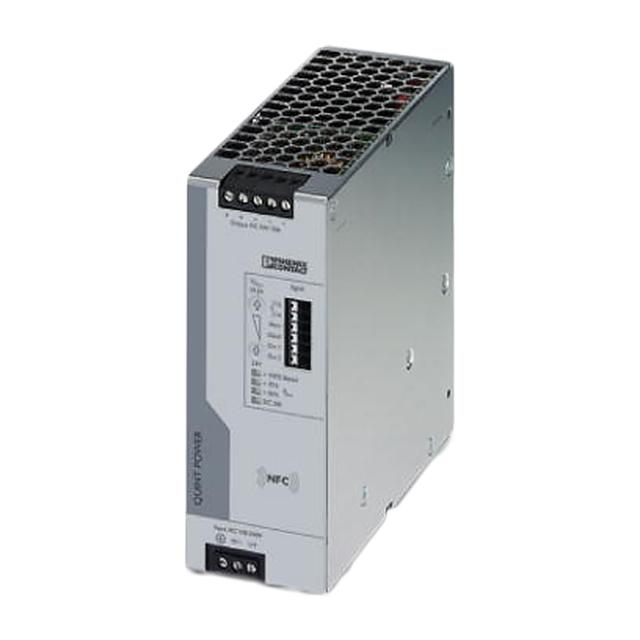

QUINT4-PS/1AC/24DC/10
Standards Met:
CSA, cUL, cULus, DNV GL, EAC, PRS, UL
Efficiency:
93.4%
Input Voltage:
230V ac
Number of Outputs:
1
Ripple And Noise:
<80mV Pk-Pk
Hazardous Area Certification:
Ex Approval
Depth:
125mm
Special Features:
Easy System Extension, High Degree of Immunity, Preventive Function Monitoring Indicates Critical Operating States Before Errors Occur, SFB Technology Trips Standard Circuit Breakers Selectively
Mounting Type:
DIN Rail Mount
Output Current:
10A
Series:
QUINT POWER
Height:
130mm
Output Voltage:
24V dc
Power Rating:
240W
HTSUS:
8504.40.7012
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
240W
Current - Output (Max):
10A
Approval Agency:
CSA, cUL, cURus
Input Type:
AC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
93%
Package:
Box
Minimum Load Required:
-
Size / Dimension:
4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm)
standardLeadTime:
14 Weeks
Voltage - Isolation:
4 kV
AC Voltage - Input:
100 ~ 250 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, Load Sharing, IP20
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Number of Outputs:
1
ECCN:
EAR99
