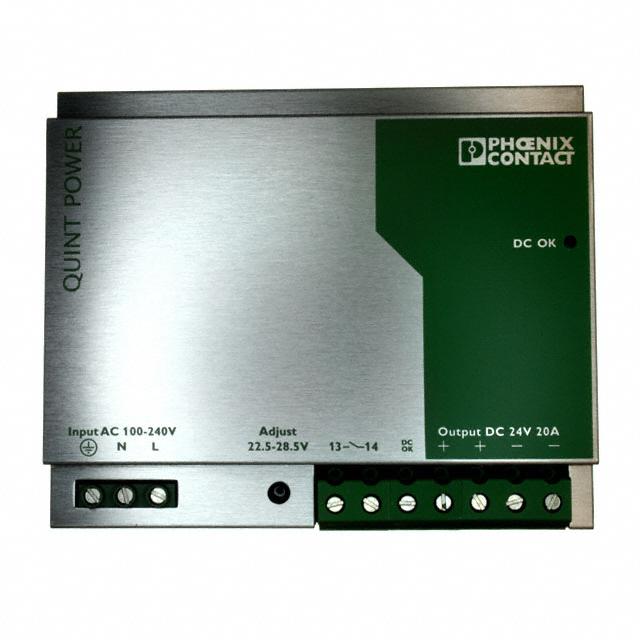

Phoenix Contact 2938620

2938620 Phoenix Contact
2938620
2938620
ET12040313
ET12040313
Phoenix Contact

Product Information

Number of Outputs:
2
Load Regulation:
±1%
AC or DC Output Voltage:
dc
Output Current:
20A
Mounting Type:
DIN Rail Mount
Efficiency:
>92%
Maximum Temperature:
+70°C
Series:
QUINT-PS-100-240AC/24DC/20
Electrical Phase:
1
AC or DC Input Voltage:
ac
Height:
130mm
Width:
125mm
Depth:
130mm
MTBF:
500000h
Output Voltage:
24V dc
Minimum Temperature:
-25°C
Power Rating:
480W
Ripple And Noise:
10mV Pk-Pk
Type:
Switch Mode
Input Voltage:
85 → 264V ac
HTSUS:
8504.40.6018
RoHS Status:
RoHS Compliant
Power (Watts):
480W
Current - Output (Max):
20A
Approval Agency:
CB, cULus, cURus
Input Type:
AC
title:
2938620
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
24V
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
2938620 Models
Efficiency:
92%
Applications:
ITE (Commercial)
edacadModelUrl:
/en/models/568700
Manufacturer:
Phoenix Contact
Minimum Load Required:
No
Size / Dimension:
4.92" L x 6.18" W x 5.12" H (125.0mm x 157.0mm x 130.0mm)
Voltage - Isolation:
4 kV
AC Voltage - Input:
100 ~ 240 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Load Sharing, Universal Input
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Packaging:
Bulk
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 2938620. Additionally, the product is supplied with 2 outputs. Load Regulation - ±1%. It has a/an dc output voltage . It carries 20a output current. The product is available in din rail mount configuration. It is a highly efficient product with an >92% of high efficiency. The product has +70°c maximum temperature. The product quint-ps-100-240ac/24dc/20, is a highly preferred choice for users. Its electrical phase configuration includes 1. It has ac input voltage. In addition, the height is 130mm. Furthermore, the product is 125mm wide. The product comes in 130mm depth. The MTBF values include 500000h. Features a 24v dc output voltage. While its minimum temperature is -25°c. Feature 480w of power rating. Carries 10mv pk-pk ripple and noise. It comes in switch mode configuration. Its input voltage is 85 → 264v ac. It is assigned with possible HTSUS value of 8504.40.6018. The product is rohs compliant. The product features power and watts of 480w. The maximum product's output current is 20a. It is approved by cb, culus, curus. It carries ac input type. It has a 24v output voltage. It is a highly efficient product with an 92% of high efficiency. The product is widely employed in ite (commercial). The phoenix contact's product offers user-desired applications. Does it require minimum load? no. The product's diameters include 4.92" l x 6.18" w x 5.12" h (125.0mm x 157.0mm x 130.0mm). 4 kv of isolation voltage. The product has an AC input voltage range of 100 ~ 240 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20, load sharing, universal input. The product quint, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. In addition, bulk is the available packaging type of the product. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
