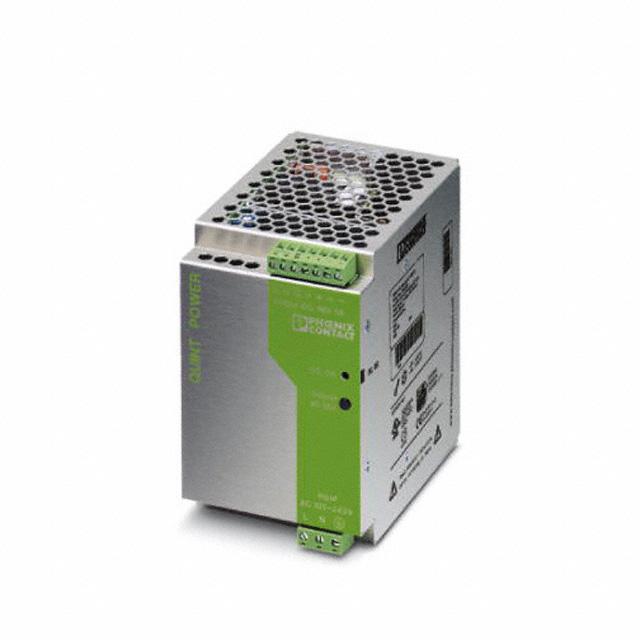

Phoenix Contact 2866255

2866255 Phoenix Contact
2866255
2866255
ET11229209
Phoenix Contact

Product Information

Number of Outputs:
1
Ripple And Noise:
30mV Pk-Pk
AC or DC Output Voltage:
Dc
Output Current:
5 A
Mounting Type:
DIN Rail Mount
Efficiency:
>91%
Maximum Temperature:
+70°C
Series:
QUINT-PS-100-240AC/48DC/5
Electrical Phase:
1
AC or DC Input Voltage:
Ac
Height:
130mm
Width:
85mm
Depth:
125mm
MTBF:
500000h
Output Voltage:
48 V dc
Minimum Temperature:
-25°C
Power Rating:
240W
Type:
Switched Mode
Input Voltage:
85 → 264V ac
HTSUS:
8504.40.6018
RoHS Status:
RoHS Compliant
Power (Watts):
240W
Current - Output (Max):
5A
Approval Agency:
CB, cULus, cURus
Input Type:
AC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
48V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
91%
Manufacturer:
Phoenix Contact
Minimum Load Required:
No
Size / Dimension:
4.92" L x 3.35" W x 5.12" H (125.0mm x 85.0mm x 130.0mm)
Voltage - Isolation:
4 kV
AC Voltage - Input:
100 ~ 240 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Load Sharing, Universal Input
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Packaging:
Box
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 2866255. Additionally, the product is supplied with 1 outputs. Carries 30mv pk-pk ripple and noise. It has a/an dc output voltage . It carries 5 a output current. The product is available in din rail mount configuration. It is a highly efficient product with an >91% of high efficiency. The product has +70°c maximum temperature. The product quint-ps-100-240ac/48dc/5, is a highly preferred choice for users. Its electrical phase configuration includes 1. It has ac input voltage. In addition, the height is 130mm. Furthermore, the product is 85mm wide. The product comes in 125mm depth. The MTBF values include 500000h. Features a 48 v dc output voltage. While its minimum temperature is -25°c. Feature 240w of power rating. It comes in switched mode configuration. Its input voltage is 85 → 264v ac. It is assigned with possible HTSUS value of 8504.40.6018. The product is rohs compliant. The product features power and watts of 240w. The maximum product's output current is 5a. It is approved by cb, culus, curus. It carries ac input type. The product is widely employed in ite (commercial). It has a 48v output voltage. It is a highly efficient product with an 91% of high efficiency. The phoenix contact's product offers user-desired applications. Does it require minimum load? no. The product's diameters include 4.92" l x 3.35" w x 5.12" h (125.0mm x 85.0mm x 130.0mm). 4 kv of isolation voltage. The product has an AC input voltage range of 100 ~ 240 vac. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20, load sharing, universal input. The product quint, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. In addition, box is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet 2866255(Technical Reference)
pdf icon
Multiple Devices 02/Dec/2019(PCN Obsolescence/ EOL)
