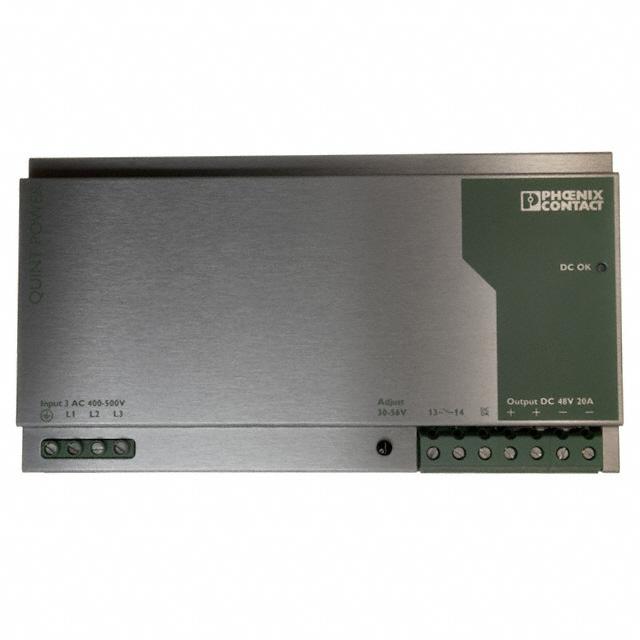

Phoenix Contact 2938222

2938222 Phoenix Contact
2938222
2938222
ET10160679
Phoenix Contact

Product Information

Number of Outputs:
2
Ripple And Noise:
20mV Pk-Pk
AC or DC Output Voltage:
Dc
Output Current:
20 A
Mounting Type:
DIN Rail Mount
Efficiency:
>90%
Maximum Temperature:
+70°C
Series:
QUINT-PS-3X400-500AC/48DC/20
Electrical Phase:
3
AC or DC Input Voltage:
Ac
Height:
130mm
Width:
125mm
Depth:
130mm
MTBF:
500000h
Output Voltage:
48 V dc
Minimum Temperature:
-25°C
Power Rating:
960W
Type:
Switch Mode
Input Voltage:
400V ac
HTSUS:
8504.40.6012
RoHS Status:
RoHS Compliant
Power (Watts):
960W
Current - Output (Max):
20A
Approval Agency:
CB, cULus, cURus
Input Type:
AC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
48V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
90%
Manufacturer:
Phoenix Contact
Size / Dimension:
5.12" L x 9.45" W x 5.12" H (130.0mm x 240.0mm x 130.0mm)
Voltage - Isolation:
4 kV
AC Voltage - Input:
400 ~ 500 VAC (3 Phase)
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, IP20, Load Sharing, Universal Input
Series:
Quint
Operating Temperature:
-25°C ~ 70°C (With Derating)
Packaging:
Box
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 2938222. Additionally, the product is supplied with 2 outputs. Carries 20mv pk-pk ripple and noise. It has a/an dc output voltage . It carries 20 a output current. The product is available in din rail mount configuration. It is a highly efficient product with an >90% of high efficiency. The product has +70°c maximum temperature. The product quint-ps-3x400-500ac/48dc/20, is a highly preferred choice for users. Its electrical phase configuration includes 3. It has ac input voltage. In addition, the height is 130mm. Furthermore, the product is 125mm wide. The product comes in 130mm depth. The MTBF values include 500000h. Features a 48 v dc output voltage. While its minimum temperature is -25°c. Feature 960w of power rating. It comes in switch mode configuration. Its input voltage is 400v ac. It is assigned with possible HTSUS value of 8504.40.6012. The product is rohs compliant. The product features power and watts of 960w. The maximum product's output current is 20a. It is approved by cb, culus, curus. It carries ac input type. The product is widely employed in ite (commercial). It has a 48v output voltage. It is a highly efficient product with an 90% of high efficiency. The phoenix contact's product offers user-desired applications. The product's diameters include 5.12" l x 9.45" w x 5.12" h (130.0mm x 240.0mm x 130.0mm). 4 kv of isolation voltage. The product has an AC input voltage range of 400 ~ 500 vac (3 phase). Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, ip20, load sharing, universal input. The product quint, is a highly preferred choice for users. The product has -25°c ~ 70°c (with derating) operating temperature range. In addition, box is the available packaging type of the product. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.

pdf icon
Datasheet 2938222(Technical Reference)
pdf icon
Multiple Devices 02/Dec/2019(PCN Obsolescence/ EOL)
pdf icon
2938222(Datasheets)
