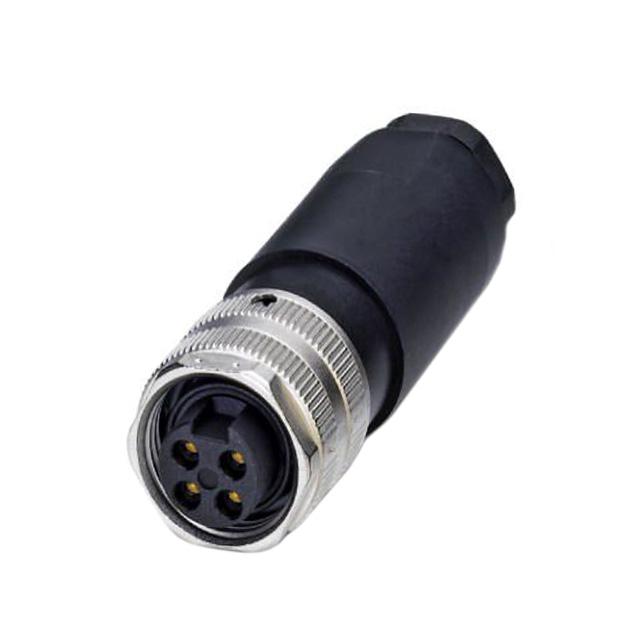

Phoenix Contact 1521355

1521355 Phoenix Contact
Phoenix Contact

Product Information

Current Rating:
9.0A
Housing Material:
Thermoplastic
Shell Size:
7/8"-16
Outer Diameter:
12mm
Voltage Rating:
300.0 V
Plug/Socket:
Socket
Contact Plating:
Gold
Termination Method:
Screw
Shielded/Unshielded:
Unshielded
Maximum Operating Temperature:
+85°C
IP Rating:
IP67
Body Orientation:
Straight
Contact Gender:
Female
Connector Size:
7/8
Mating Type:
A Coded
Mounting Type:
Cable Mount
Series:
SACC
Coding:
A
Minimum Operating Temperature:
-25°C
Number of Contacts:
4
Contact Material:
Brass
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
300V
Mounting Feature:
-
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
4
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Polybutylene Terephthalate (PBT)
Shielding:
-
Cable Opening:
0.394" ~ 0.472" (10.00mm ~ 12.00mm)
Shell Material:
Zinc Die Cast
REACH Status:
REACH Affected
Current Rating (Amps):
9A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 HB
Package:
Bulk
Shell Size - Insert:
7/8"-4
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Screw
standardLeadTime:
8 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Black, Silver
Series:
SACC
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1521355. The product has a current rating of 9.0a. The product also features robust thermoplastic housing material. The shell has 7/8"-16 size. Its outer diameter is 12mm. Moreover, the product has a nominal 300.0 v voltage rating. It comprises a socket. The high-quality gold is used as contact plating material. It allows screw termination method. Moreover, the product is unshielded . It has a maximum operating temperature of +85°c. It is IP rated with ip67. It has straight body orientation. This female contact is widely suited for specific applications. The connector has 7/8 size. It is a type of a coded mating. The product is available in cable mount configuration. The product sacc, is a highly preferred choice for users. The product is coded with a. Whereas, the minimum operating temperature of the product is -25°c. The product contains 4 contacts. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. Moreover, the product has a nominal 300v voltage rating. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 4. It has nice contact finishing of gold. The product is plated with reliable polybutylene terephthalate (pbt) material. Cable opening features include 0.394" ~ 0.472" (10.00mm ~ 12.00mm). It is made from highly reliable zinc die cast materials. In addition, it is reach affected. Additionally, the product's output is 9a. The basic product material is metal. It carries ul94 hb of material flammability rating. It is shipped in bulk package . The insert's size is 7/8"-4. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. The product features screw termination style. It has a long 8 weeks standard lead time. While it is also supplied with highly stable polyamide (pa66), nylon 6/6 and polyurethane (pur) insert material. The product has a a orientation. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include backshell, coupling nut. The product is available in free hanging (in-line) configuration. The shell is an excellent finishing of nickel. It has a classic black, silver colour. The product is made from sturdy copper zinc materials. The product is designated with the ear99 code number.
