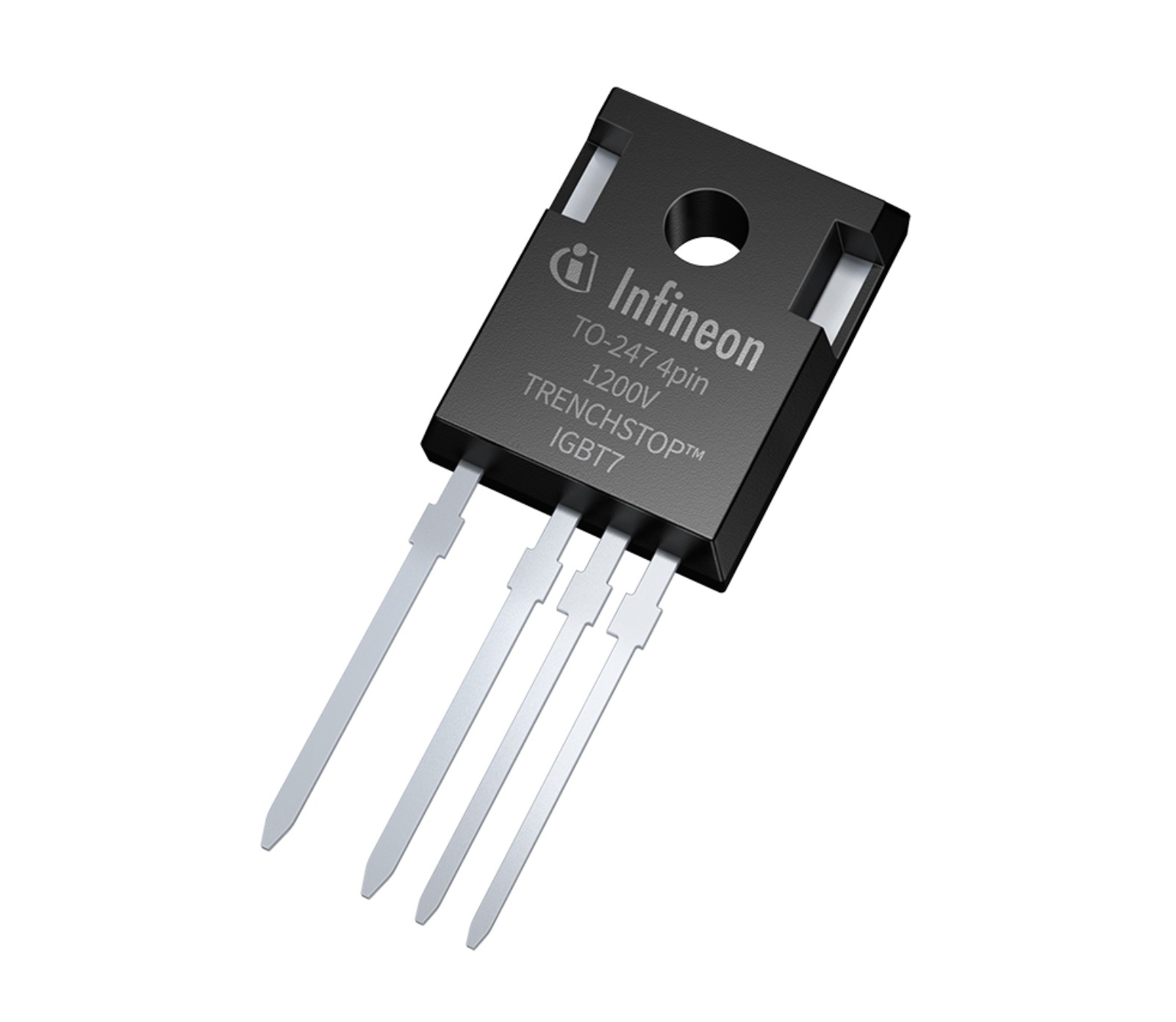

Infineon IKZA40N120CH7XKSA1 Single Collector, Single Emitter, Single Gate IGBT, 70 A 1200 V, 4-Pin

IKZA40N120CH7XKSA1 Infineon Single Collector, Single Emitter, Single Gate IGBT, 70 A 1200 V, 4-Pin
Infineon

Product Information

Mounting Type:
Through Hole
Maximum Power Dissipation:
330 W
Maximum Collector Emitter Voltage:
1200 V
Number of Transistors:
1
Channel Type:
N
Maximum Continuous Collector Current:
70 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
PG-TO247-4-STD-NT3.7
Configuration:
Single Collector, Single Emitter, Single Gate
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Single Collector Single Emitter Single Gate IGBT 70 A 1200 V 4-Pin manufactured by Infineon. The manufacturer part number is IKZA40N120CH7XKSA1. The product is available in through hole configuration. Provides up to 330 w maximum power dissipation. Whereas features a 1200 v of collector emitter voltage (max). It has 1 transistors . The product is available in [Cannel Type] channel. The product has a maximum 70 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of pg-to247-4-std-nt3.7. The product is available in single collector, single emitter, single gate configuration. It contains 4 pins.

pdf icon
Datasheet - IKZA40N120CH7XKSA1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IKZA40N120CH7XKSA1 Internationally to many countries around the world.
Yes. You can also search IKZA40N120CH7XKSA1 on website for other similar products.
We accept all major payment methods for all products including ET28373780. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET28373780 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET28373780.
You can order Infineon brand products with IKZA40N120CH7XKSA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBTs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon IKZA40N120CH7XKSA1 Single Collector, Single Emitter, Single Gate IGBT, 70 A 1200 V, 4-Pin. You can also check on our website or by contacting our customer support team for further order details on Infineon IKZA40N120CH7XKSA1 Single Collector, Single Emitter, Single Gate IGBT, 70 A 1200 V, 4-Pin.
