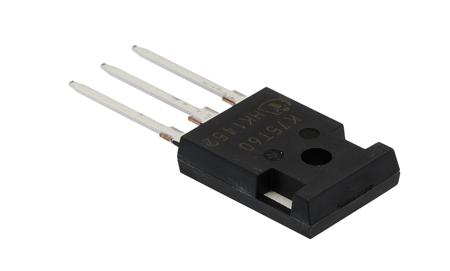

Infineon IKW75N60TFKSA1 IGBT, 80 A 600 V, 3-Pin TO-247

IKW75N60TFKSA1 Infineon IGBT, 80 A 600 V, 3-Pin TO-247
Infineon

Product Information

Dimensions:
16.03 x 21.1 x 5.16mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
428 W
Maximum Collector Emitter Voltage:
600 V
Maximum Continuous Collector Current:
80 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
TO-247
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is IGBT 80 A 600 V 3-Pin TO-247 manufactured by Infineon. The manufacturer part number is IKW75N60TFKSA1. The given dimensions of the product include 16.03 x 21.1 x 5.16mm. The product is available in through hole configuration. Provides up to 428 w maximum power dissipation. Whereas features a 600 v of collector emitter voltage (max). The product has a maximum 80 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of to-247. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +175 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IKW75N60TFKSA1 on website for other similar products.
We accept all major payment methods for all products including ET16849301. Please check your shopping cart at the time of order.
You can order Infineon brand products with IKW75N60TFKSA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBTs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon IKW75N60TFKSA1 IGBT, 80 A 600 V, 3-Pin TO-247. You can also check on our website or by contacting our customer support team for further order details on Infineon IKW75N60TFKSA1 IGBT, 80 A 600 V, 3-Pin TO-247.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16849301 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16849301.
Yes. We ship IKW75N60TFKSA1 Internationally to many countries around the world.
