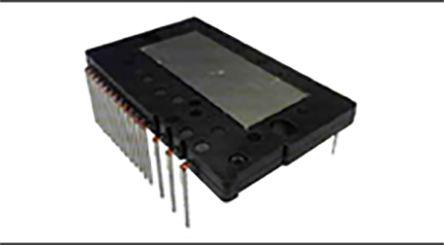

Fuji Electric 6MBP20XSD060-50-P IGBT, 20 A 600 V, 36-Pin IPM

6MBP20XSD060-50-P Fuji Electric  IGBT, 20 A 600 V, 36-Pin IPM
Fuji Electric

Product Information

Dimensions:
43 x 26 x 3.83mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
41 W
Maximum Collector Emitter Voltage:
600 V
Maximum Continuous Collector Current:
20 A
Package Type:
IPM
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+125 °C
Pin Count:
36
RoHs Compliant
Checking for live stock

This is IGBT 20 A 600 V 36-Pin IPM manufactured by Fuji Electric. The manufacturer part number is 6MBP20XSD060-50-P. The given dimensions of the product include 43 x 26 x 3.83mm. The product is available in through hole configuration. Provides up to 41 w maximum power dissipation. Whereas features a 600 v of collector emitter voltage (max). The product has a maximum 20 a continuous collector current . The package is a sort of ipm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c. It contains 36 pins.
