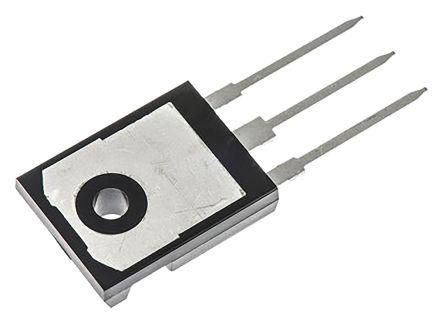

Infineon IKW40N60DTPXKSA1 IGBT, 67 A 600 V, 3-Pin TO-247

IKW40N60DTPXKSA1 Infineon IGBT, 67 A 600 V, 3-Pin TO-247
IKW40N60DTPXKSA1
Infineon

Product Information

Dimensions:
16.13 x 5.21 x 21.1mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
246 W
Maximum Collector Emitter Voltage:
600 V
Number of Transistors:
1
Channel Type:
N
Maximum Continuous Collector Current:
67 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
TO-247
Minimum Operating Temperature:
-40 °C
Switching Speed:
30kHz
Gate Capacitance:
1400pF
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Energy Rating:
1.67mJ
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is IGBT 67 A 600 V 3-Pin TO-247 manufactured by Infineon. The manufacturer part number is IKW40N60DTPXKSA1. The given dimensions of the product include 16.13 x 5.21 x 21.1mm. The product is available in through hole configuration. Provides up to 246 w maximum power dissipation. Whereas features a 600 v of collector emitter voltage (max). It has 1 transistors . The product is available in [Cannel Type] channel. The product has a maximum 67 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of to-247. Whereas, the minimum operating temperature of the product is -40 °c. It has about 30khz switching speed . It has approximately 1400pf gate capacitance . It has a maximum operating temperature of +175 °c. It contains 3 pins. It has approximately 1.67mj energy rating . The product offers single transistor configuration.

pdf icon
IKW40N60DTP 600V DuoPack IGBT and Diode TRENCHSTOP Performance Series(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
