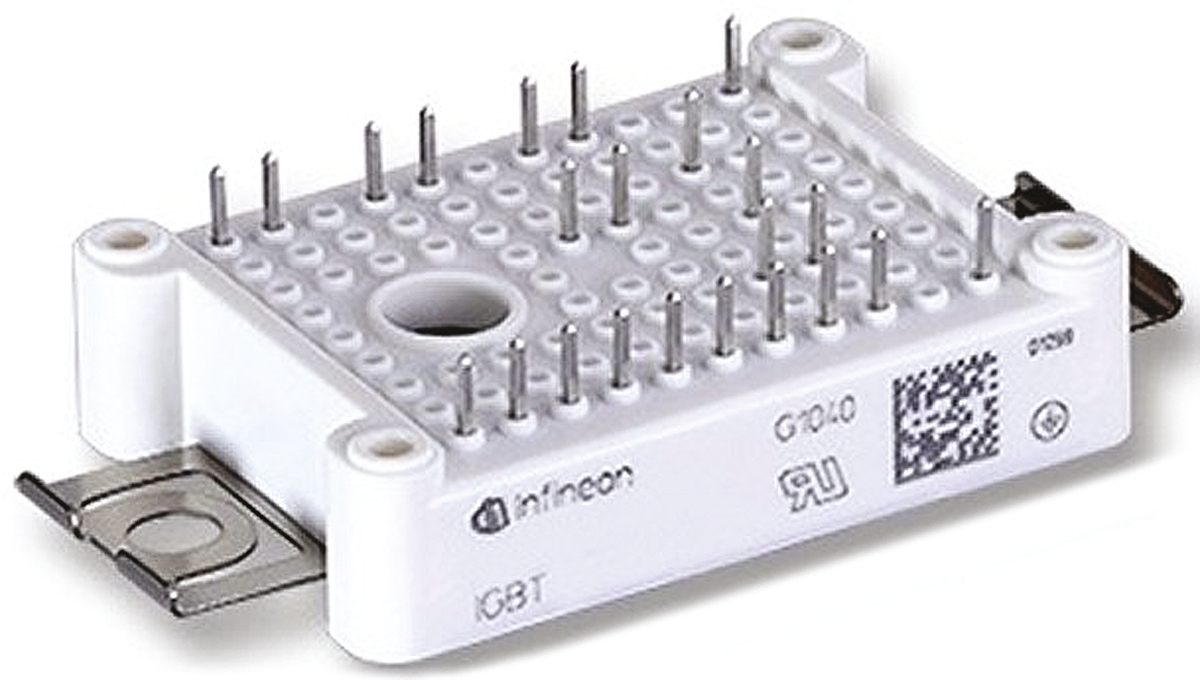

Infineon FP15R12W1T4B3BOMA1, EASY1B Common Collector IGBT Module, 28 A max, 1200 V, PCB Mount

Enrgtech Part No: ET16792818
|
Manufacturer Part No:
FP15R12W1T4B3BOMA1
|
Manufacturer: Infineon

FP15R12W1T4B3BOMA1 Infineon , EASY1B Common Collector IGBT Module, 28 A max, 1200 V, PCB Mount

Product Information

Dimensions:

48 x 33.8 x 12mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

130 W

Maximum Collector Emitter Voltage:

1200 V

Channel Type:

Maximum Continuous Collector Current:

28 A

Maximum Gate Emitter Voltage:

±20V

Package Type:

EASY1B

Minimum Operating Temperature:

-40 °C

Switching Speed:

1MHz

Configuration:

Common Collector

Maximum Operating Temperature:

+150 °C

Checking for live stock

This is EASY1B Common Collector IGBT Module 28 A max 1200 V PCB Mount manufactured by Infineon. The manufacturer part number is FP15R12W1T4B3BOMA1. The given dimensions of the product include 48 x 33.8 x 12mm. The product is available in pcb mount configuration. Provides up to 130 w maximum power dissipation. Whereas features a 1200 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 28 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of easy1b. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in common collector configuration. It has a maximum operating temperature of +150 °c. It contains 23 pins. The product offers 3 phase transistor configuration.

FP15R12W1T4_B3, IGBT-Module(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Explanation Guide to Infineon's Bxx Suffixes(Technical Reference)
