Name: VS-GB75YF120UT, Vishay
Brand: Vishay
SKU: ET14080838
Price: 135.99 GBP
Availability: PreOrder

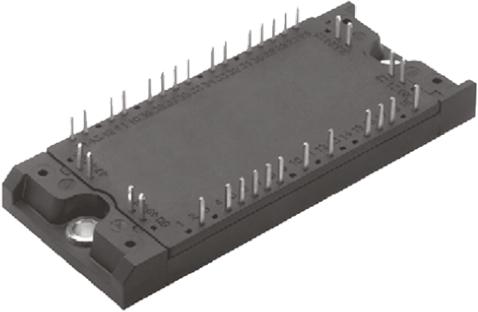

VS-GB75YF120UT Vishay , ECONO2 Dual Half Bridge IGBT Module, 100 A max, 1200 V, PCB Mount

(0)

Product Information

Dimensions:

107.8 x 45.4 x 13.2mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

480 W

Maximum Collector Emitter Voltage:

1200 V

Channel Type:

Maximum Continuous Collector Current:

100 A

Maximum Gate Emitter Voltage:

±20V

Package Type:

ECONO2

Configuration:

Dual Half Bridge

Maximum Operating Temperature:

+150 °C

Pin Count:

Transistor Configuration:

Dual Half Bridge

Checking for live stock

This is ECONO2 Dual Half Bridge IGBT Module 100 A max 1200 V PCB Mount manufactured by Vishay. The manufacturer part number is VS-GB75YF120UT. The given dimensions of the product include 107.8 x 45.4 x 13.2mm. The product is available in pcb mount configuration. Provides up to 480 w maximum power dissipation. Whereas features a 1200 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 100 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of econo2. The product is available in dual half bridge configuration. It has a maximum operating temperature of +150 °c. It contains 35 pins. The product offers dual half bridge transistor configuration.

IGBT Fourpack Module, 75 A(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
