Name: 6MBi450V-120-50, Fuji Electric
Brand: Fuji Electric
SKU: ET14014410
Price: 365.31 GBP
Availability: PreOrder

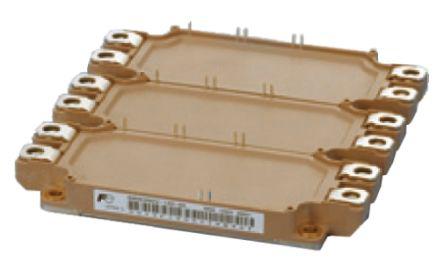

6MBi450V-120-50 Fuji Electric , M629 3 Phase Bridge IGBT Module, 450 A max, 1200 V, PCB Mount

(0)

Product Information

Dimensions:

162 x 150 x 17mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

2.25 kW

Maximum Collector Emitter Voltage:

1200 V

Channel Type:

Maximum Continuous Collector Current:

450 A

Maximum Gate Emitter Voltage:

±20V

Package Type:

M629

Configuration:

3 Phase Bridge

Maximum Operating Temperature:

+150 °C

Pin Count:

Transistor Configuration:

3 Phase

Checking for live stock

This is M629 3 Phase Bridge IGBT Module 450 A max 1200 V PCB Mount manufactured by Fuji Electric. The manufacturer part number is 6MBi450V-120-50. The given dimensions of the product include 162 x 150 x 17mm. The product is available in pcb mount configuration. Provides up to 2.25 kw maximum power dissipation. Whereas features a 1200 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 450 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of m629. The product is available in 3 phase bridge configuration. It has a maximum operating temperature of +150 °c. It contains 29 pins. The product offers 3 phase transistor configuration.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
