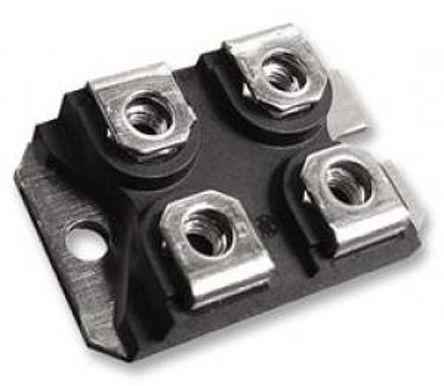

Vishay VS-GB90DA120U IGBT, 149 A 1200 V, 4-Pin SOT-227

VS-GB90DA120U Vishay IGBT, 149 A 1200 V, 4-Pin SOT-227
Vishay

Product Information

Dimensions:
38.3 x 25.7 x 12.3mm
Mounting Type:
Panel Mount
Maximum Power Dissipation:
862 W
Maximum Collector Emitter Voltage:
1200 V
Channel Type:
N
Maximum Continuous Collector Current:
149 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
SOT-227
Minimum Operating Temperature:
-40 °C
Switching Speed:
60kHz
Maximum Operating Temperature:
+150 °C
Pin Count:
4
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is IGBT 149 A 1200 V 4-Pin SOT-227 manufactured by Vishay. The manufacturer part number is VS-GB90DA120U. The given dimensions of the product include 38.3 x 25.7 x 12.3mm. The product is available in panel mount configuration. Provides up to 862 w maximum power dissipation. Whereas features a 1200 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 149 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of sot-227. Whereas, the minimum operating temperature of the product is -40 °c. It has about 60khz switching speed . It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration.

pdf icon
Insulated Gate Bipolar Transistor Ultrafast IGBT, 90 A(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
