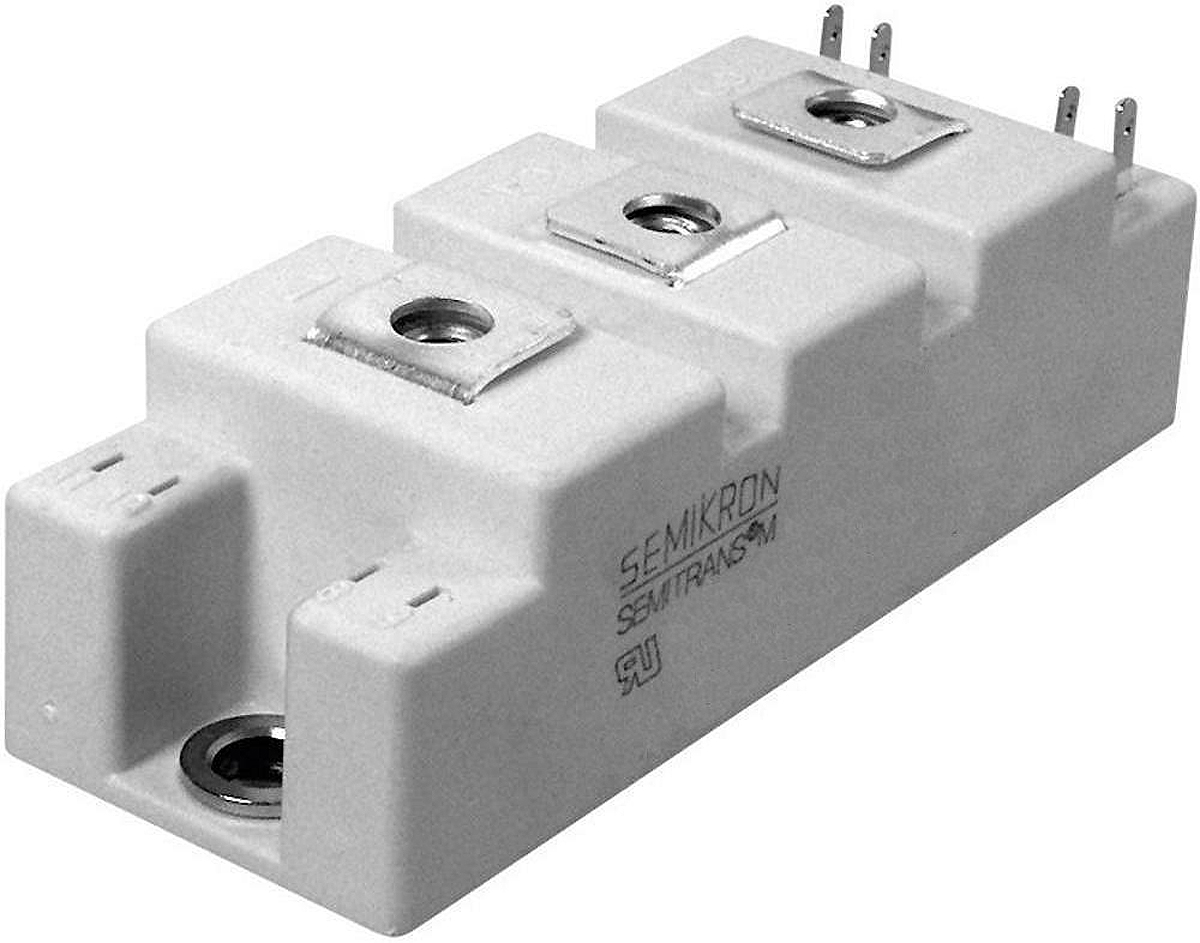

Semikron SKM100GB176D, SEMITRANS2 Dual Half Bridge IGBT Module, 125 A max, 1700 V, Panel Mount

SKM100GB176D Semikron , SEMITRANS2 Dual Half Bridge IGBT Module, 125 A max, 1700 V, Panel Mount
Semikron

Product Information

Dimensions:
94 x 34 x 30.5mm
Mounting Type:
Panel Mount
Maximum Collector Emitter Voltage:
1700 V
Channel Type:
N
Maximum Continuous Collector Current:
125 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
SEMITRANS2
Minimum Operating Temperature:
-40 °C
Configuration:
Dual Half Bridge
Maximum Operating Temperature:
+150 °C
Pin Count:
7
Transistor Configuration:
Series
RoHs Compliant
Checking for live stock

This is SEMITRANS2 Dual Half Bridge IGBT Module 125 A max 1700 V Panel Mount manufactured by Semikron. The manufacturer part number is SKM100GB176D. The given dimensions of the product include 94 x 34 x 30.5mm. The product is available in panel mount configuration. Whereas features a 1700 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 125 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of semitrans2. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in dual half bridge configuration. It has a maximum operating temperature of +150 °c. It contains 7 pins. The product offers series transistor configuration.

pdf icon
Semikron Driver Selection Guide(Technical Reference)
pdf icon
SKM 100GB176D, SEMITRANS 2 Trench IGBT Modules(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
